- mpnDG408LDY-E3
- brandname: Siliconix / Vishay
- manufacturername: Siliconix / Vishay

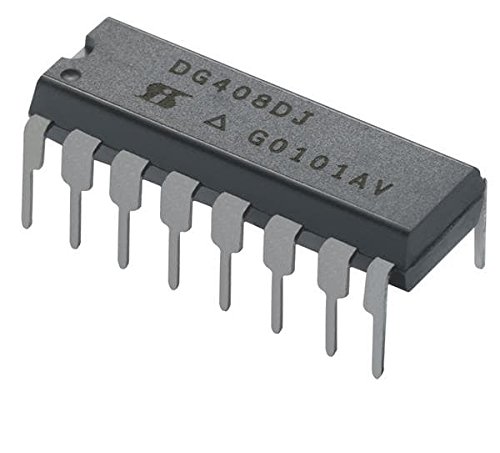

Multiplexer Switch ICs LV Single 8:1 3-bit Multiplexer/MUX (10 pieces)
- PartNumber: DG408LDY-E3
- PackageQuantity: 10
- Manufacturer: Vishay / Siliconix
- Label: Vishay / Siliconix
Attributes
| Key | Value |
|---|
| Alternate Part No. | 781-DG408LDY-E3 |
| Brand | Vishay / Siliconix |
| Dimensions | 10 x 4 x 1.55 mm |
| Drain to Source On Resi. | 100 Ohms |
| Height | 0.061" (1.55mm) |
| Input Voltage Range | 2.7 to 12 (Single), ?3 . |
| Length | 0.393 in |
| Manufacturer | Vishay |
| Manufacturer Part No. | DG408LDY-E3 |
| Maximum Operating Tempe. | + 85 C, +85 ?C |
| Maximum Power Dissipati. | 600 mW |
| Minimum Operating Tempe. | -40 ?C, - 40 C |
| Mounting Style | SMD/SMT |
| Mounting Type | Surface Mount |
| Number of Channels | 1 Channel, 8 |
| Number of Inputs | 8 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Number of Switches | 1 |
| Off Time - Max | 100 ns |
| On Resistance - Max | 80 Ohms |
| On Time - Max | 95 ns |
| Operating Supply Current | 700 uA |
| Operating Supply Voltage | 3 V to 12 V/3 V to 6 V |
| Operation | Analog Switch |
| Package Type | SOIC |
| Package/Case | SOIC-16 Narrow |
| Packaging | Tube |
| Product Category | Multiplexer Switch ICs |
| Propagation Delay Time | 60 ns |
| Series | DG4xx, DG Series |
| Supply Current | 1 mA |
| Supply Voltage | 44 V |
| Temperature Operating R. | -40 to +85 ?C |
| Voltage, Input, High Le. | 12 (Single), ?6 (Dual) V |
| Voltage, Input, Low Lev. | 2.7 (Single), ?3 (Dual). |
| Width | 0 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| us.rs-online.com | 70026160 | 0.99 | 500 | 5 | | Siliconix / Vishay | | 0.99 @ 500 |
| Hotenda | H2410664 | 1.77 | 1 | 974 | | Vishay/Siliconix | | 1.77 @ 5 |
 | Component Electronics | 408LDY-E3-VIS | 3.08 | 1 | 50 | | Vishay | | 3.08 @ 5 |
 | swatee.com | DG408LDY-E3 | 3.85 | 1 | 592 | | Vishay | | 3.85 @ 5 |
