- mpnEMV 1200
- brandname: LASCAR
- manufacturername: LASCAR

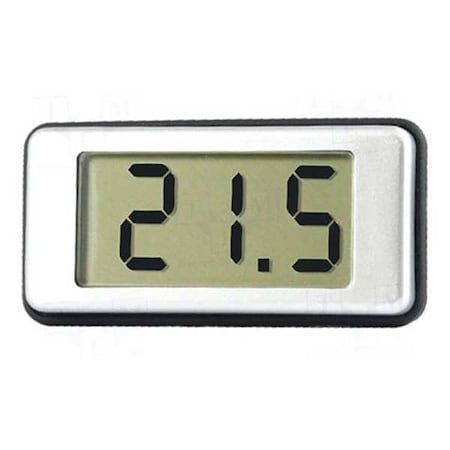

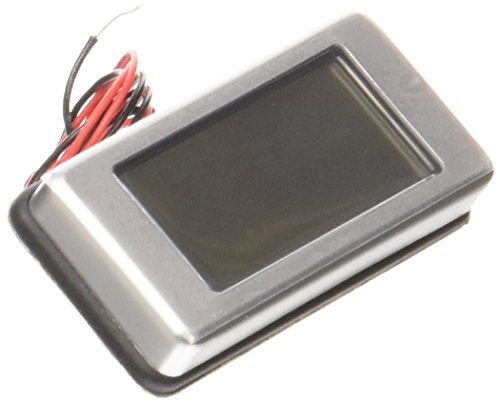

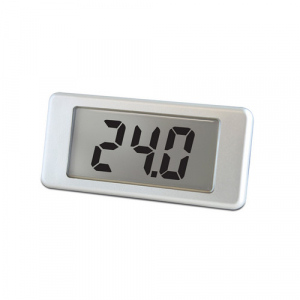

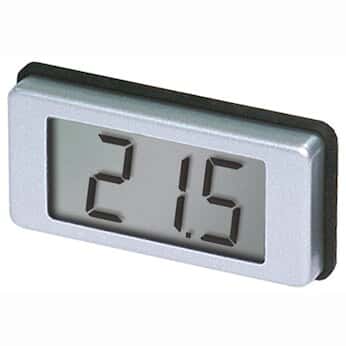

Lascar EMV 1200 Signal Powered 3 Digit LCD Voltmeter, Signal Powered
- Brand: Lascar
- PartNumber: EMV 1200
- Model: EMV 1200
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Lascar
- Label: Lascar
Attributes
| Key | Value |
|---|
| Accuracy | 0.002 V, 0.2V |
| Accuracy (overall error) | 0.2V (1 count) |
| Approvals | RoHS |
| Base Product Number | - |
| Brand | LASCAR |
| Category | Industrial Automation a. |
| Connection Type | 2-Wire |
| Current Stock | 9 |
| DC voltage measuring ac. | ?(0,2V + 1 digit) |
| DC voltage measuring ra. | 4...25V |
| Depth | 0.5 in |
| Description | 2-WIRE LCD VOLTMETER |
| Detailed Description | Voltmeter LCD - Black C. |
| Digi-Key Part Number | 2136-EMV1200-ND |
| Digit height | 12.5mm |
| Dimensions | 1.73 W x 0.82 H in |
| Dimensions (W x H x D) | 43.5x21.4x7mm |
| Dimensions, Cutout, Inc. | 5.5 Dia. mm |
| Display | LCD |
| Display Characters - He. | 0.500" (12.70mm) |
| Display Digit Height | 12.5 mm |
| Display parameters | 3 digit |
| Display Range | 4 to 25 VDC |
| Display Resolution | 100 mVDC |
| Display Type | LCD, LCD - Black Charac. |
| Features | - |
| Function | voltmeter |
| Includes | Rubber Seal and Instruc. |
| Ingress Protection | - |
| International Shipping | No |
| Item | Digital Panel Wire Meter |
| Kind of display used | LCD |
| Kind of meter | digital, |
| Lead Time | Expected to ship in 1-2. |
| Manufacturer | LASCAR, Lascar Electron. |
| Manufacturer Product Nu. | EMV 1200 |
| Manufacturer Standard L. | 2 Weeks |
| Manufacturers Warranty . | 1 yr |
| Maximum Opening Tempera. | 50 ?C |
| Measurement | DC voltage |
| Measurement Range | 4 to 25 VDC |
| Measuring instrument fe. | splashproof enclosure |
| Measuring Range | 4 to 25 V, 4 ~ 25VDC |
| Measuring Type | Voltage |
| Mechanical mounting | M5 screw |
| Meter Type | voltmeter |
| Mfr | Lascar Electronics |
| Minimum Operating Tempe. | 0 ?C |
| Mounting | on panel, Drill Mount |
| Mounting hole diameter | ?5.5mm |
| Mounting Type | Panel Mount - Surface, . |
| Mpn | EMV 1200 |
| Number of Characters Pe. | 3.5 |
| Number of Digits | 3 |
| Operating Temperature | 0 to +50 ?C, 0?C ~ 50?C |
| Operating temperature | 0 to 50?C (32 to 122?F) |
| Output Type | - |
| Package | Box |
| Package Quantity | 1 |
| Panel Cut Out | 7/32 in., 5.5 mm Dia. ". |
| Panel Cutout Dimensions | Circular - 5.50mm Dia |
| Panel Meter Type | voltmeter |
| Primary Type | Electronic |
| Product Header | Single Hole Mounting 2 . |
| Product Status | Active |
| Protection | against reverse polarity |
| Range | 4 to 25V d.c. |
| Sample rate | 3 samples/sec |
| Sampling | 3x/s |
| Series | EM Series, EMV |
| SKU | ZO-G7960294 |
| Special Features | Splashproof |
| Standards | IP67/NEMA 4X (with rubb. |
| SubCategory | Test Instruments |
| Supply Current | 3mA |
| Supply Voltage | 3-50 VDC, 3 to 50V d.c. |
| Temperature Range | 0 to 50 C |
| Termination Style | Wire Leads |
| Type | Electronic, DC Voltage,. |
| Type of meter | voltmeter |
| Voltage - Supply | 3 ~ 50VDC |
| Voltage measuring resol. | 100mV DC |
| Weight | - |
