| [Ui] Rated Insulation Voltage | 300 V UL 508 || 500 V EN/IEC 60947-1 || 300 V CSA C22.2 No 14 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Adjustable Range Of Switching Point On Falling Pressure | 2.5-61.1 bar |
| Adjustable Range Of Switching Point On Rising Pressure | 7-70 bar |
| Ambient Air Temperature For Operation | -25-70 ?C |
| Ambient Air Temperature For Storage | -40-70 ?C |
| Auxiliary Contacts Operation | simultaneous, snap action |
| Awg Gauge | AWG 20...AWG 14 |
| Cable Entry | cable gland 7-13 mm |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Contacts Material | silver contacts |
| Contacts Type And Composition | 2 C/O |
| Controlled Fluid | hydraulic oil 0-160 ?C) |
| Depth | 85 mm |
| Destruction Pressure | 320 bar |
| Device Short Name | XMLC |
| Electrical Circuit Type | control circuit |
| Electrical Connection | screw-clamps terminals, 1 x 0.5...2 x 2.5 mm? |
| Electrical Shock Protection Class | class I IEC 1140 || class I IEC 536 || class I NF C 20-030 |
| Enclosure Material | zinc alloy |
| Environmental Disclosure | ENVPEP110914EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fluid Connection Type | 1/4" - 18 NPTF (female) |
| Height | 113 mm |
| Ip Degree Of Protection | IP66 conforming to EN/IEC 60529 |
| Line Rated Current | 3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 || 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 || 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1 |
| Local Display | with |
| Materials In Contact With Fluid | brass || PTFE || steel || FPM, FKM |
| Maximum Operating Rate | 60 cyc/mn |
| Maximum Permissible Accidental Pressure | 160 bar |
| Maximum Permissible Pressure - Per Cycle | 90 bar |
| Maximum Resistance Across Terminals | 25 mOhm IEC 255-7 category 3 || 25 mOhm NF C 93-050 method A |
| Mechanical Durability | 6000000 cycles |
| Mercury Free, Rohs Exemption Information | Yes |
| Net Weight | 0.695 kg |
| Operating Position | any position |
| Possible Differential Maximum At High Setting | 60 bar |
| Possible Differential Minimum At High Setting | 8.9 bar +/- 0.8 bar) |
| Possible Differential Minimum At Low Setting | 4.5 bar +/- 0.8 bar) |
| Pressure Actuator | piston |
| Pressure Sensor Size | 70 bar |

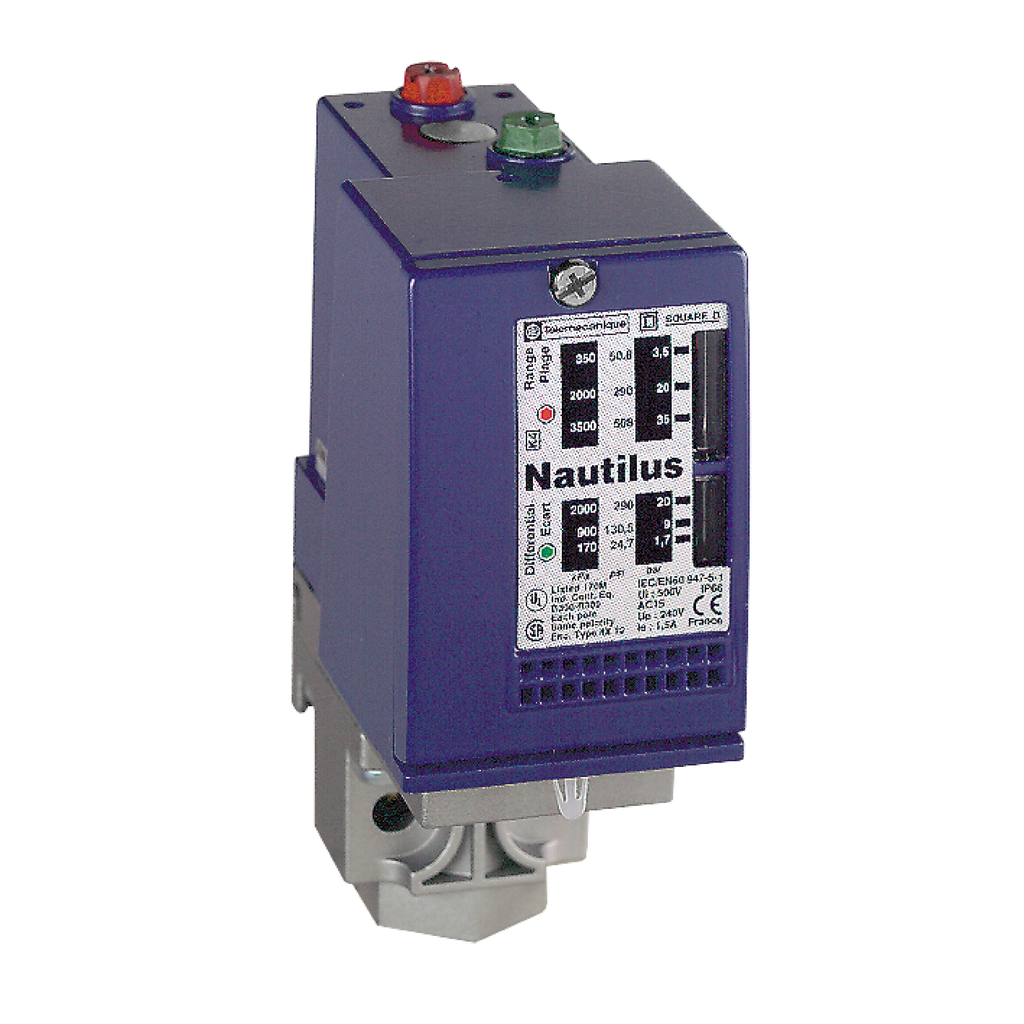

| Pressure Sensor Type, Product Or Component Type | electromechanical pressure sensor |
| Pressure Switch Type Of Operation | regulation between 2 thresholds |
| Product Certifications | CSA || EAC || UL |
| Protective Treatment | TC standard version |
| Range Of Product | Telemecanique Pressure sensors XM |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Repeat Accuracy | 2 % |
| Scale Type | adjustable differential |
| Setting | external |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
| Standards | UL 508 || CSA C22.2 No 14 || CE || EN/IEC 60947-5-1 |
| Sustainable Offer Status | Green Premium product |
| Terminal Block Type | 8 terminals |
| Vibration Resistance | 4 gn 30-500 Hz)IEC 60068-2-6 |
| Warranty | 18 months |
| Width | 46 mm |
