| [Us] Rated Supply Voltage | 220 V - 10...15 %)three phase || 220 V - 20...15 %)single phase |
| Ambient Air Temperature For Operation | 0-55 ?C |
| Ambient Air Temperature For Storage | -25-65 ?C |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1409001EN |
| Communication Interface | Modbus, Integrated || SERCOS III, Integrated |
| Connector Type | RJ45 CN3) || RJ45 CN4) |
| Continuous Output Current | 2.6 A 16 kHz |
| Continuous Power | 400 W 220 V |
| Control Signal Type | servo motor encoder feedback CN2 |
| Depth | 146 mm |

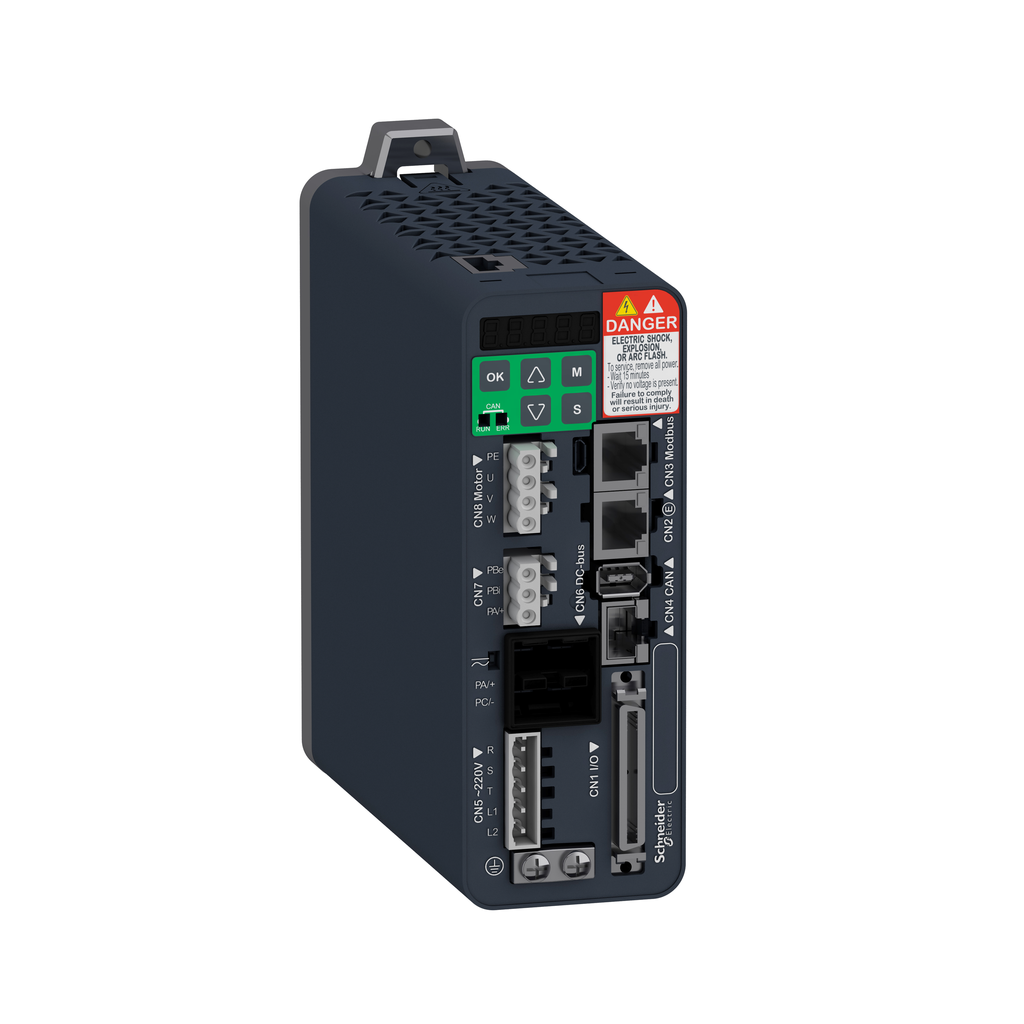

| Device Short Name | LXM28S |
| Discrete Input Logic, Discrete Output Logic | positive or negative CN1) |
| Discrete Input Number | 8 programmable CN1) || 2 fast capture CN1) || 1 safety function STO CN9) |
| Discrete Input Voltage | 24 V DC logic |
| Discrete Output Number | 4 logic output CN1)12...24 V DC || 1 pulse train output (PTO) CN1) |
| Discrete Output Voltage | 12...24 V DC |
| Electrical Connection | spring terminal 0.82...1 mm?, AWG 18 L1-L2) || spring terminal 0.82...1 mm?, AWG 18 R, S, T) || spring terminal 0.82...1 mm?, AWG 18 U, V, W, PE) || spring terminal 0.82...1 mm?, AWG 18 PA/+, PBe) |
| Electrical Isolation | between power and control |
| Electromagnetic Compatibility | conducted emission level 3category C3 EN/IEC 61800-3 |
| Emc Filter | without EMC filter |
| Environmental Disclosure | ENVPEP1409001EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Format Of The Drive | compact housing |
| Height | 150 mm |
| Ip Degree Of Protection | IP20 |
| Line Current | 3.8 A 211.6 % 220 V, single phase || 3.8 A 183.7 % 220 V, three phase |
| Marking | CSA || CE || cULus |
| Maximum Leakage Current | 1.3 mA |
| Mercury Free, Pvc Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Method Of Access | slave |
| Net Weight | 1 kg |
| Network Frequency | 47.5...63 Hz |
| Nominal Power | 0.4 kW 220 V 16 kHz |
| Operating Position | vertical |
| Output Current 3S Peak, Output Current 3S Peak 2, Output Current 3S Peak 3 | 7.8 A 220 V |
| Overvoltage Category | III |
| Phase | three phase || single phase |
| Product Certifications | cULus || CSA || CE |
| Product Compatibility | servo motor BCH2 60 mm, 2 400 W || servo motor BCH2 80 mm, 1 400 W || servo motor BCH2 130 mm, 1 300 W |
| Product Or Component Type | motion servo drive |
| Protection Type | against reverse polarity inputs signal || against short-circuits outputs signal || overcurrent motor || overvoltage motor || undervoltage motor || overheating motor || overload motor || overspeed motor |
| Range Of Product | Lexium 28 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Relative Humidity | 5-95 % without condensation |
| Safety Function | STO (safe torque off), Integrated |
| Safety Level | SIL 2 IEC 61800-5-2 2007 || SIL 2 IEC 61508-1 2010 || PL d/category 3 EN/ISO 13849-1 2008 || SIL 2 EN/ISO 13849-1 2009/AC || SIL 2 EN 60204-1 2006 || SIL 2 EN 60204-1 2009/A1 || SIL 2 EN 60204-1 2010/AC || SIL 2 IEC 62061 2012 |
| Shock Resistance | 10 gn, type I IEC 60721-3-3 |
| Signalling Function | servo status and fault codes five 7-segment display units |
| Standards | EN/IEC 61800-5-1 |
| Status Led | 1 LED (Red) charge || 1 LED (Green) RUN || 1 LED (Red) error |
| Supply Frequency | 50/60 Hz - 5...5 % |
| Supply Voltage Limits | 200-255 V three phase || 170-255 V single phase |
| Sustainable Offer Status | Green Premium product |
| Switching Frequency | 16 kHz |
| Transmission Rate | 9600 bauds...115200 bauds (automatic detection) 100-100 m |
| Type Of Cable | shielded motor cable 0-55 ?C) copper |
| Type Of Cooling | natural convection |
| Vibration Resistance | 3M4 3 mm 9-200 Hz)IEC 60721-3-3 |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 55 mm |
