- mpnLCCX1/0-12-X
- brandname: Panduit
- manufacturername: Panduit

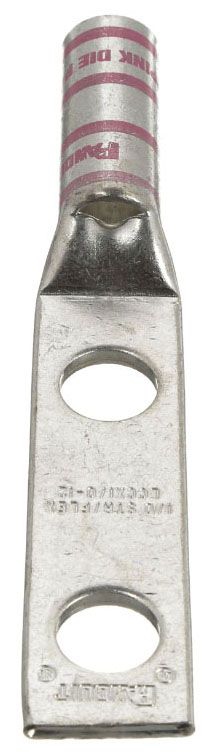

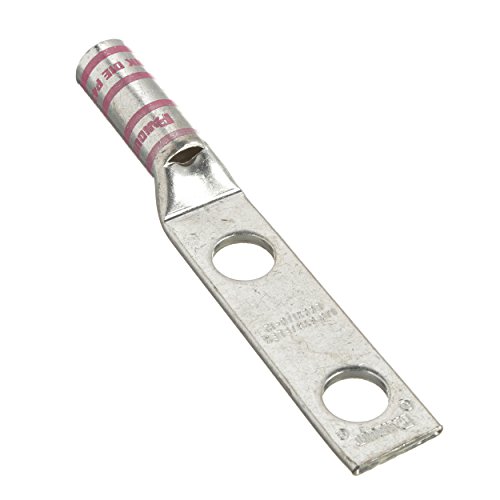

Panduit LCCX1/0-12-X Flex Conductor Lug, Two Hole, Long Barrel With Window, 1/2" Stud Hole Size, 1.75" Stud Hole Spacing Width, Pink, 1/0 AWG Class G/H/I/K/M Conductor Size, 1/0 AWG Diesel Locomotive Conductor Size, 1/0 AWG Code Conductor Size, 1-9/16" Wire Strip Length, 0.13" Tongue Thickness, 0.85" Tongue Width, 1.50" Neck Length, 4.83" Overall Length
- Brand: Panduit
- PartNumber: LCCX1/0-12-X
- Model: LCCX1/0-12-X
- Color: Pink
- Size: 1/2
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 1/0 |
| Approvals | CSA, UL |
| Base Product Number | LCCX |
| Brand | Panduit |
| Cable Size | 1/0 AWG |
| Catalog Number | LCCX1/0-12-X |
| Category | Connectors, Interconnec. |
| Color | Pink |
| Color Code | Pink |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN TERM RECT TONG 1/0. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | 0.450" (11.43mm) |
| Diameter - Barrel OD | 0.580" (14.73mm) |
| Diameter - Ring ID | 0.530" (13.46mm) |
| Digi-Key Part Number | 298-14863-ND |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Gross Weight | 1.55 lbs |
| GTIN | 00074983425778 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCCX1/0-12-X |
| Item Type | Compression Connectors . |
| Length | 4.83" |
| Length - Overall | 4.830" (122.68mm) |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | LCCX1/0-12-X |
| Manufacturer Product Nu. | LCCX1/0-12-X |
| Manufacturer Standard L. | 6 Weeks |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 1/0 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 1/0 AWG |
| Mounting | 2-Hole, 1.56 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 2 |
| Package | Bulk |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug? |
| Size | 1/0 AWG Class B, C, G, . |
| Special Features | Consult cable manufactu. |
| Stud Size | 42.767, 1/2 in |
| Stud/Tab Size | 1/2 Stud |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.130" (3.30mm) |
| Terminal Style | Two Stud Holes |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| UPC | 074983425778 |
| Width | 0.85" |
| Width - Outer Edges | 0.850" (21.59mm) |
| Wire Gauge | 1/0 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCCX1/0-12-X | 7.76 | 1 | In Stock | | PANDUIT | | 7.76 @ 1 |
 | alldataresource.com | LCCX1/0-12-X | 10.59 | 1 | In Stock | | Panduit | | 10.59 @ 1 |
| Radwell | LCCX1012X | 13.16 | 100 | In Stock | | PANDUIT | | 13.16 @ 100 |
 | Digi-Key | 4565929 | 13.99 | 1 | 5 | | Panduit Corp | | 13.99 @ 1 |
| Onlinecomponents.com | LCCX1/0-12-X | 14.22 | 1 | In Stock | | Panduit | | 14.22 @ 1 |
 | Newark | 52AH0851 | 14.9 | 1 | In Stock | | PANDUIT | | 14.9 @ 1 |
 | Zoro | G0776811 | 15.72 | 1 | In Stock | 58 | Panduit | 1.55 | 15.72 @ 1 |
 | Galco | LCCX1/0-12-X-PNDT | 17.26 | 10 | In Stock | | Panduit | 1.55 | 17.26 @ 10 |
 | Platt.com | 0609477 | 18.36 | 1 | In Stock | | Panduit | | 18.36 @ 1 |
 | crescentelectric.com | 505926 | 19.63 | 1 | In Stock | | Panduit | | 19.63 @ 1 |
| Airline Hydraulics | PANDUIT LCCX1/0-12-X | 20.79 | 1 | In Stock | | Panduit Corp | | 20.79 @ 1 |
 | gordonelectricsupply.com | LCCX1/0-12-X | 181.5 | 1 | In Stock | 12 | PANDUIT | | 181.5 @ 1 |
 | turtle.com | PAN LCCX1/0-12-X | 2032.68 | 1 | In Stock | | Panduit | | 2032.68 @ 1 |
