| Actuator Type | Manual Gear |
| ANSI Specifications | ANSI 1035, ANSI 372 |
| Application | Commercial, HVAC, Industrial, Mechanical |
| ASME Specifications | ASME Class 150 |
| ASTM Specifications | ASTM A-108 C10450, ASTM A-276 S31600, ASTM A-536 Grade 65-45-12, ASTM A-564 S17400, ASTM A-570 GR33, ASTM A-582 S41600, ASTM B-148 C95400, ASTM B-584 C83600, ASTM D-2000 |
| AWWA Specifications | AWWA A-21.5, AWWA C-115 |
| Body Material, Valve Body Material | Ductile Iron |
| Collection | LD-1000 Series |

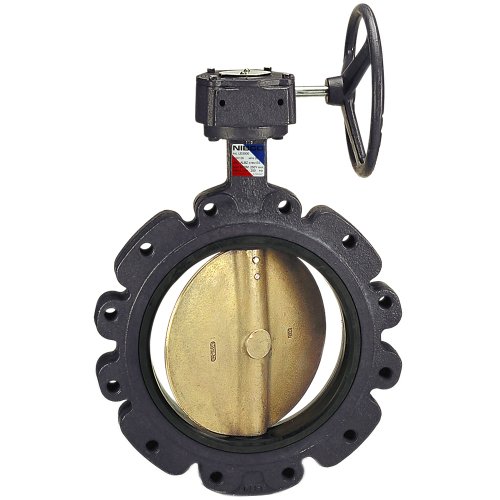

| Description: | LD10005 14 LUG/EPDM/ALUM BRZ W/GEAR OP |
| Dimensions | 26.77 in L |
| Disc Material, Valve Disc Material | Aluminum Bronze |
| Domestic/Import, Origin | Domestic |
| End Connection 1, End Connection 2, End Connections, Valve Body Style | Lug |
| FM Approved, UL Listed | No |
| Length | 3-13/100 in |
| Manufacturer, Supplier: | NIBCO INC |
| Material | Aluminum Bronze, Ductile Iron, Rubber |
| Material Type, Softgoods Material, Valve Seat Material | EPDM |
| MFG Part #: | NLGL15T |
| MSS Specifications | MSS SP-25, MSS SP-67 |
| Nominal Size, Valve Size | 14 in |
| NSF Certified | Yes |
| NSF Specifications | NSF 372 |
| Pressure Class | 150#, 125/150 lb |
| Recommended Valve Application | Cold Water, Hot Water |
| Series | LD-1000-5 |
| Stem & Pin Material | Stainless Steel (Stem)/(Taper Pin) |
| Temperature Rating | 225 deg F |
| Type | Lug Style |
| UPC: | 039923777973 |
| Valve Operator | Gear Operator Handle |
| Valve Stem | Non-rising |
| Valve Type | Butterfly Valve |
