brand:
manufacturer:
Description:

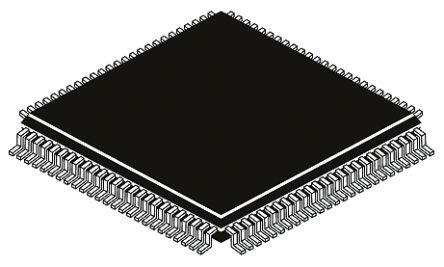

MICROCHIP TECHNOLOGY DSPIC33EP256MU810-I/PT | IC: dsPIC microcontroller; SRAM: 28kB; Memory: 256kB; TQFP10
Preferred Price:
18.73
Price:
18.73
Min Simple Price:
6.72
Absolute Min Price:
15.3
Min Price:
15.3
Dimensions:
[473.0, 1.0, 1.0]
qty:
21
simpleSku:
DcwMTE:::DSPIC33EP256MU810-I/PT
sku:
DcwMTE::VO:DSPIC33EP256MU810-I/PT@y0
condition:
11
seller:
Avnet
amzMan:
microchip
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| ADC Channels | ADC Channels |
| ADC Resolution | 10bit, 12 bit |
| ADCs | 2 (32 x 10 bit) |
| Architecture | C Compiler ; Modified Harvard |
| Base Product Number | DSPIC33EP256MU810 |
| Brand | Brand |
| Built-in generator | 32kHz, |
| Case | TQFP100 |
| Category | Integrated Circuits (ICs) |
| Comparator Type | 3 |
| Connectivity | CANbus, I?C, IrDA, LINbus, QEI, SPI, UART/USART, USB OTG |
| Core Processor, Family | DSPIC |
| Core Size | 16-Bit |
| CPU Speed | 70 MIPS |
| Data Bus Width, PWM Resolution | 16bit |
| Data Converters | A/D 32x10b/12b |
| Device Core | Device Core |
| Dimensions | Dimensions, 10.00 x 10.00 x 1.05 mm |
| EEPROM Memory | 0 B |
| EEPROM Size | - |
| Family Name | Family Name |
| Frequency | 60 |
| Height | 0.041" (1.05mm), Height |
| Instruction Set Architecture | RISC |
| Kind of architecture | Harvard 16bit |
| Length | Length, 0.393 in |
| Manufacturer, Mfr | MICROCHIP TECHNOLOGY |
| Maximum Frequency | Maximum Frequency |
| Maximum Number of Ethernet Channels, Number of PCI Channels | 0 |
| Maximum Operating Temperature | +85 ?C |
| Memory Type, Program Memory Type | FLASH |
| Minimum Operating Temperature | -40 ?C, Minimum Operating Temperature |
| Mounting | SMD |
| Mounting Type | Surface Mount |
| Number of 16bit timers | 9 |
| Number of 32bit timers, Number of UART Channels | 4 |
| Number of ADC Units | 2 |
| Number of ADCs | 2(32 x 12 bit) |
| Number of Bits | 16 |
| Number of CAN Channels | Number of CAN Channels |
| Number of cores, Number of PWM Units | 1 |
| Number of Ethernet Channels | Number of Ethernet Channels |
| Number of I/O, Number of inputs/outputs | 83 |
| Number of I2C Channels | Number of I2C Channels |
| Number of LIN Channels | Number of LIN Channels |
| Number of Pins | 100 |
| Number of PWM Units | Number of PWM Units |
| Number of SPI Channels | Number of SPI Channels |
| Number of Timers | Number of Timers, 13 |
| Number of USART Channels | Number of USART Channels |
| Operating Temperature | -40?C ~ 85?C (TA) |
| Operating Voltage | 3 to 3.6 V |
| Oscillator Type | Internal |
| Package | Tray |
| Package / Case | 100-TQFP |
| Package Type | TQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Pin Count | Pin Count |
| Program memory | 256kB |
| Program Memory Size | 280 kB, 256KB (85.5K x 24), Program Memory Size |
| Program Memory Type | Program Memory Type |
| Pulse Width Distortion | 12 x 16 bit (Motor Control), 16 x 16 bit (Standard) |
| Pulse Width Modulation | 16 (12 x 16 bit) |
| PWM Channels | 12, 12 (Motor Control), 16 (Standard) |
| PWM Resolution | 16 bit |
| RAM Size | 28 kB, RAM Size, 12K x 16 |
| Series | dsPIC 33EP Series, dsPIC? 33EP |
| Speed | 60 MIPs |
| SRAM memory capacity | 28kB |
| Stock | Stock |
| Supplier Device Package | 100-TQFP (12x12) |
| Temperature Operating Range | -40 to +85 ?C |
| Terminal pitch | 0.4mm |
| Timer Resolution | Timer Resolution, 16, 32 bit |
| Timers | 4 x 32 bit, 9 x 16 bit, Timers |
| Type of integrated circuit | dsPIC microcontroller |
| Typical Operating Supply Voltage | Typical Operating Supply Voltage |
| USB Channels | 1 x Device, 1 x Host, 1 x OTG, USB Channels |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Width | 0 in, 12mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Avnet | DSPIC33EP256MU810-I/PT | 6.72 | 323.904 | 119 | 13 | Microchip | 6.72 @ Qty: 119+ | |||
 | RS Delivers | 819-5418 | 7.4676 | 359.93832 | 119 | In Stock | Microchip | 7.4676 @ Qty: 119+ | ||
| Hotenda | H2308638 | 7.56 | 7.56 | 1 | 573 | Microchip Technology | 7.56 @ Qty: 1+ | |||
| Mouser | 579-PIC33256MU810IPT | 7.94 | 7.94 | 1 | In Stock | Microchip | 7.94 @ Qty: 1+ | |||
 | TME | 33EP256MU810-I/PT | 10.11 | 10.11 | 1 | In Stock | MICROCHIP TECHNOLOGY | 10.11 @ Qty: 1+ | ||
| Digi-Key | 2712348 | 10.56 | 428.736 | 100 | In Stock | Microchip Technology | 10.56 @ Qty: 1+ | |||
| Onlinecomponents.com | DSPIC33EP256MU810-I/PT | 10.57 | 133.182 | 30 | In Stock | Microchip Tech. | 10.57 @ Qty: 30+ | |||
 | Newark | 65R5396 | 10.62 | 511.884 | 119 | In Stock | MICROCHIP | 10.62 @ Qty: 100+ | ||
| us.rs-online.com | 70048405 | 16.21 | 781.322 | 119 | In Stock | Microchip Technology Inc. | 16.21 @ Qty: 119+ | |||
| AmazonTP | B00AZVF9GE | 25.55 | 25.55 | 1 | In Stock | 2 | Microchip Technology | 25.55 @ Qty: 1+ |
