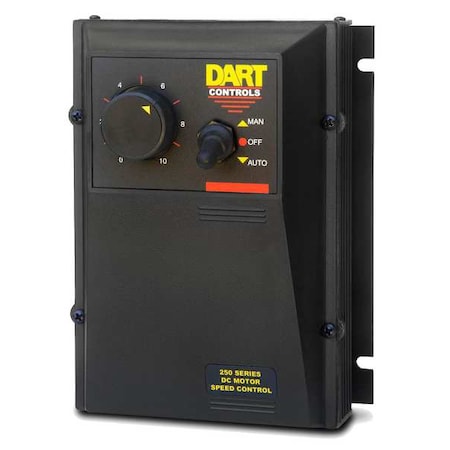

Dart Controls 253G-200E-7
Dart Controlszoom

Dart Controls 253G-200E-7

mpn:
253G-200E-7
brand:
Dart Controls
manufacturer:
Dart Controls
MPN:
253G-200E-7
Description:
DC Speed Control, DC Speed Control SCR, NEMA 4, Lower Voltage Motor Output Power 1/8 to 1 hp, AC Input Voltage 120/240V AC, Voltage Output 90/180V DC, Speed Range 50:1, Rotation Single Direction, External Switches ON/OFF
Weight:
1.55
Weight:
5.01 LB
Preferred Price:
843.21
Price:
843.21
Min Simple Price:
476.39002616
Absolute Min Price:
676.47
Min Price:
676.47
Dimensions:
[8.0, 7.0, 5.0]
qty:
21
simpleSku:
zcwNDI:::253G-200E-7
sku:
zcwNDI::YK:253G-200E-7@y0
condition:
11
seller:
grainger.ca
amzMan:
dart controls
HazMat:
False
DropShip:
True

Attributes

Key ^Value
AC Input Voltage120/240V AC
Accepts Tach Feedback, Follower CircuitYes
ApprovalscUL, UL
Brand, ManufacturerDart Controls
Current Stock22
Current/Torque Limit, IR CompensationAdjustable
DC Speed ControlSCR
Depth, Overall Depth2.75 in
Dynamic Braking, International Shipping, RegenNo
EnclosureNEMA 4X
Enclosure RatingNEMA 4
Enclosure Type, PackageEnclosed
External SwitchesON/OFF
Family SeriesDart Controls Drives, 250 Series
Feedback TypesArmature, Tachometer
Gross Weight2.1005 lbs
Height, Overall Height7.25 in
Higher Voltage Motor Output Power1/4 to 2 hp
IncludesIsolated 4-20 Current Follower
Input Current (AC)2-13.2 A, 1.8-12.9 A
Input Phase1
Input Voltage (AC)108-132 VAC, 216-264 VAC
ItemDC Speed Control
Item Number, Manufacturer Part Number, Mpn253G-200E-7
Lead TimeExpected to ship in 1-2 business days
Lower Voltage Motor Output Power1/8 to 1 hp
Max HP @ 180 VDC Armature2 hp
Max HP @ 90 VDC Armature1 hp
Max. Amps, Maximum Current10 A
Maximum Linear Acceleration8 sec
Minimum Linear Acceleration0.5 sec
Mount TypeSurface
Net Weight1.69 lbs
Nominal Armature VDC, Output Armature Voltage (DC)90 VDC, 180 VDC
Operating Temp., Operating Temperature-10 Degrees to 45 Degrees C
Operator ControlsBuilt In
Output Field Current (DC)1 A
Output Field VDC100 VDC, 200 VDC
Overall Width, Width5.53 in
Product Series250
RotationSingle Direction
SeriesSeries 253
Shunt Wound Voltage, Shunt Wound Volts100/200V DC
SKUZO-G3956635
Speed Range50:1
Speed Regulation+/-0.5% with Tach Feedback, +/-1% with Armature Voltage Feedback
StandardscULus Listed
SubCategoryMotors
Temperature Range (F)14-113 ?F
Voltage Output90/180V DC

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
grainger.caWWG13A944476.39002616476.390026161In StockDART CONTROLS2.1476.39002616 @ Qty: 1+
thumbzoomGalco253G-200E-7-DART517.4517.412Dart Controls2.1005517.4 @ Qty: 1+
thumbzoomZoroG3956635523.99523.99150Dart Controls2.1523.99 @ Qty: 1+
thumbzoomWalker Industrial253G-200E-7529.71529.711In StockDart Controls529.71 @ Qty: 1+
thumbzoomsustainablesupply.comC1541920529.75529.751In StockDart Controls2.1529.75 @ Qty: 1+
thumbzoomRadwell253G-200E-7540.0540.013DART CONTROLS540.0 @ Qty: 1+
AmazonTPB07F7QCJ2Z571.73571.731In Stock2Dart Controls571.73 @ Qty: 1+
thumbzoomMRO Supply2564365581.65581.651In StockDart Controls581.65 @ Qty: 1+
us.rs-online.com72256011618.01618.0111Dart Controls618.01 @ Qty: 1+
thumbzoomsimsupply.comZO-G3956635620.17620.17122Dart Controls620.17 @ Qty: 1+
thumbzoomRaptor SuppliesAA4RHB717.1264035717.12640351In StockDART CONTROLS717.1264035 @ Qty: 1+
B01M1FFRYK

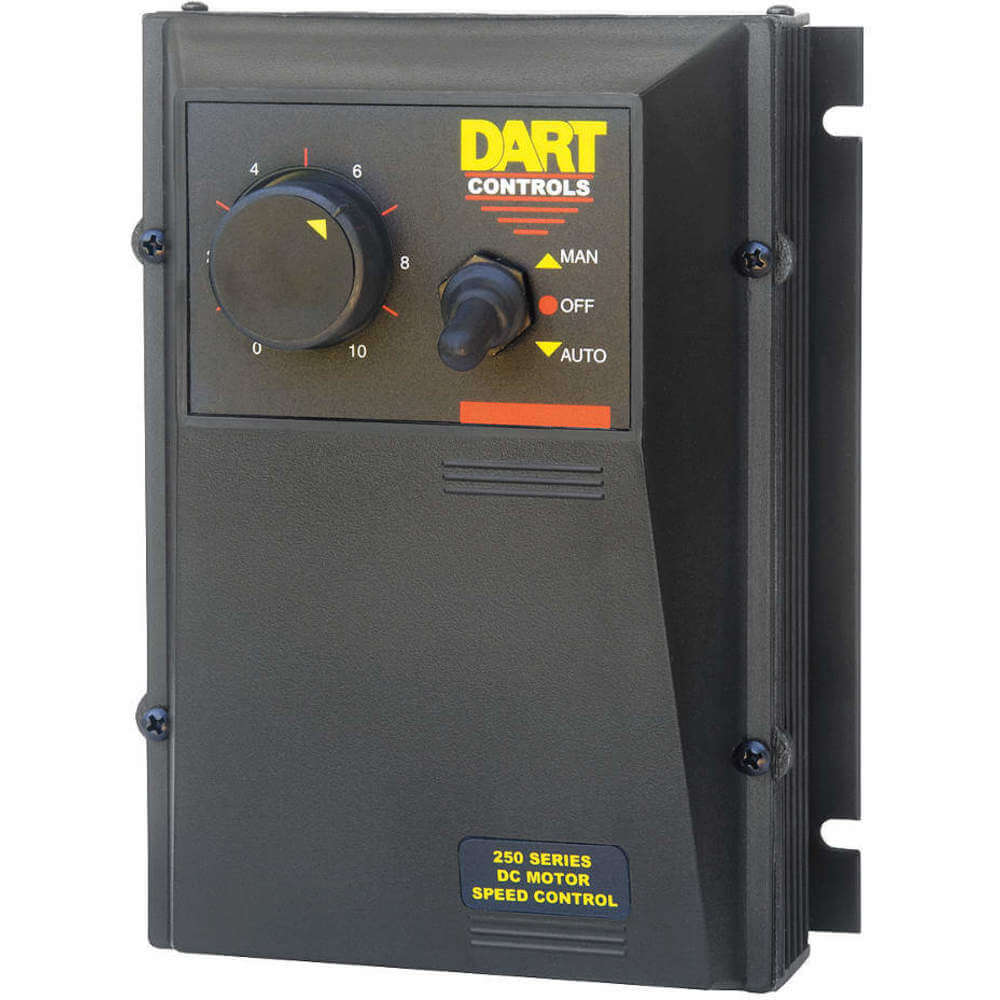

Dart Controls 253G-200E-7

DC Speed Control, 90/180VDC, 10A, NEMA 4X

DC Speed Control, 90/180VDC, 10A, NEMA 4Xzoom
