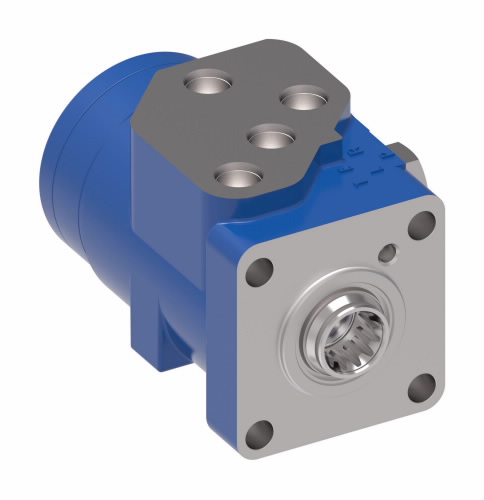

291-1206-003 DANFOSS | Search our online catalog of Mobile Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Additional ports, Flow amplification, Special features17, Sub brand, Unit type21, Valve options | None |
| Application | Lawn and Garden Equipment, Turf Equipment, Golf Course Maintenance Equipment, Lift Trucks, Compact Utility Tractors |
| Design code11 | 1 |
| Eccn | EAR99 |
| Flow rate12 | 11 LPM |
| Fluid compatibility13 | See Eaton Technical Bulletin 3-401 |
| Housing material | Ductile Iron |
| Icc2 | Steering Control Unit (SCU) |
| Identification | Eaton Product Number On Nameplate |
| Inlet or load sense relief valve setting, Inlet pressure rating, Working pressure max | 140 bar |
| Input torque | Standard |
| Integral valves | Yes |
| Load circuit | Non Reaction |
| Main displacement | 100 cubic centimetre per revolution |
| Maximum back pressure | 21 bar |
| Maximum flow rate | 19 litre per minute |
| Mechanical interface | Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa |
| Model Code | ABR1CA460AA062G00VAAH3A0AA10AC |
| Mounting threads | None On Port Face 4X M6X1.0-6H On Mounting Face |
| Neutral circuit | Open Center |
| Paint | Black |
| Ports | 4X .5625-18 UNF-2B SAE O-Ring Port |
| Product height uom, Product length uom, Product width uom | inch |
| Product height, Product width | 3.17 |
| Product length | 5.67 |
| Product trade name | Series 5 |
| Product weight | 11 |
| Product weight uom | pound |
| Recommended filtration level | ISO 18/13 Cleanliness |
| Return pressure rating | 10 bar |
| Working temperature max | 93 degree Celsius |
