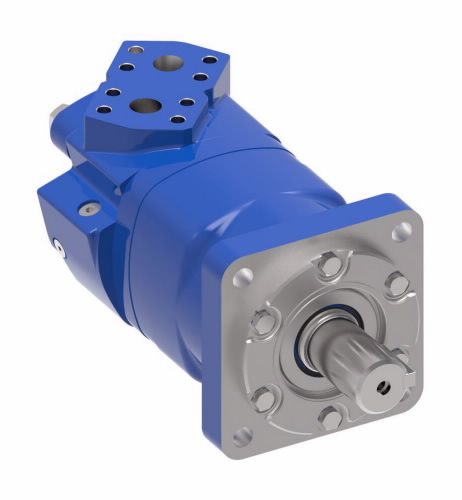

112-1530-006 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application | Other: Mobile equipment, Snow Removal, Mowing, Spayer, Trencher, Wood products |
| Brake type | Hydraulic |
| Case flow options | .4375-20 UNF-2B SAE O-Ring Port With Check Valve |
| Design code11 | 6 |
| Displacement | 195.8 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 150 litre per minute |
| Geroler options, Seal options | Standard |
| Icc2 | Low-Speed Gerotor/Geroler |
| Identification, Low pressure relief, Pressure flow option, Shaft options, Special assembly instructions, Special features hardware, Two speed ratio, Valve options | None |
| Intermittent pressure | 310 bar |
| Maximum speed | 775 revolutions per minute |
| Model Code | M06120AB04AA0200000000000AA00F |
| Mounting Type | Standard; (SAE CC); 4 Bolt; 127.0 [5.00] Pilot Dia. 14.35 [.565] Dia. Holes On 162.0 [6.38] Dia. Bolt Circle |
| Output shaft type | Straight |
| Paint | Low Gloss Black |
| Port type | 1.3125-12 UN-2B SAE O-Ring Ports - Staggered Ports |
| Product height | 5.78 |
| Product height uom, Product length uom, Product width uom | inch |
| Product length | 12.13 |
| Product material | Cast Iron |
| Product trade name | 6000 Series |
| Product weight | 55.00 |
| Product weight uom | pound |
| Product width | 5.80 |
| Recommended system working temperature | -34?C to 82?C |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 575 newton metre |
| Viscosity recommendation | 70 Saybold universal second |
