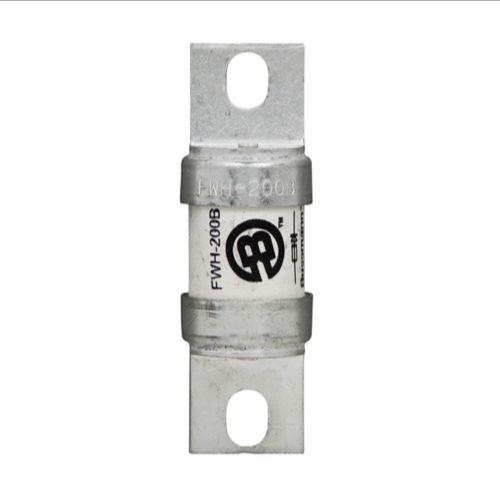

Bussmann FWH-200B
Bussmannzoom

Bussmann FWH-200B

mpn:
FWH-200B
brand:
BUSSMANN/COOPER
manufacturer:
BUSSMANN/COOPER
MPN:
FWH-200B
Description:
Buy FWH-200B BUSSMANN/COOPER , Learn more about FWH-200B FUSE, 200A, 500V, BLADE, FAST ACTING, View the manufacturer, and stock, and datasheet pdf for the FWH-200B at Jotrin Electronics.
Weight:
0.53125
Weight:
1.0 LB
Preferred Price:
128.19
Price:
128.19
Min Simple Price:
70.06
Absolute Min Price:
99.48
Min Price:
99.48
Dimensions:
[4.0, 2.0, 2.0]
qty:
21
simpleSku:
jk3ODM:::FWH-200B
sku:
jk3ODM::FC:FWH-200B@y0
condition:
11
seller:
Radwell
amzMan:
bussmann
HazMat:
False
DropShip:
False

Attributes

Key ^Value
AC Voltage Rating, Rated Voltage500V AC
Alarm Contact, Made in USA, RoHS, Trip IndicatorNo
Amperage Rating, Amps200
Amperage Rating:, Amps, Current Rating200 A
ApplicationInd Facilities & Factories - Facility: Safety and Security Systems|Ind Facilities & Factories - Facility: Critical Power|Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other|Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs, Semiconductor, DC Common bus, DC drives, Power converters/rectifiers
ApplicationsElectrical, Industrial
Approval AgencyCE, UR
ApprovalsCSA, UL
Body Length1.84 "
Body Material, Material, Material:Ceramic
Body StyleBolt-On
BrandEaton Bussmann series
Breaking Capacity @ Rated Voltage200kA AC, 50kA DC
Case Diameter1.15 in
Case Length3.63 in
Catalog Number, Item Number, Manufacturer Part Number, Manufacturer Product Number, Part # AliasesFWH-200B
CategoryCircuit Protection
Category, ItemSemiconductor Fuse
CharacteristicSemiconductor
ClassaR, High Speed
Class, Class:Class aR
Class, Features, Operating Temperature, Response Time-
Color, Color FamilyWhite
Compatible Fuse Block Series1BS
Connection, Connection:Blade end x blade end
Country of OriginIN - India, India, IN
Current Rating (Amps), Fuse Amps200A
DC Voltage Rating500V DC
Depth, WidthNot Applicable
DescriptionFUSE CARTRIDGE 200A 500VAC/VDC
Detailed Description200A 500 VAC 500 VDC Fuse Cartridge Requires Holder
Diameter1-5/32", 1.56 "
Digi-Key Part NumberFWH-200B-ND
Dimensions3.63 in L x 1.15 in D, 1.156 x 3.625 in
Dimensions:3.5827 IN X 1.1811 IN X 1.1811 IN
ECCNEAR99
ElementSingle
Equivalent Brand and SeriesA50QS, Bussmann FWH, Littelfuse L50S, Mersen A50P
Equivalent SeriesA50P, A50QS, FWH, L50S
Family / StyleFHW
Family SeriesBussmann Fuses, FWH Series
Fits Fuse Block StyleNonrejection
Functionally Equal ToLittelfuse L50S, Mersen/Ferraz Shawmut A50P, A50QS
Fuse Interrupt Rating, Interrupt Rating200 kAIC at 300 Vdc|50 kAIC at 300 Vdc
Fuse Size3-5/8" L x 1-5/32" dia
Fuse TypeFast Blow
Fuse Type, TerminationCartridge
Gross Weight8.5 lbs
Height, Width1.1811 in.
I2t Clearing Amps8.5 kA
In-stock90
Indicator StyleWithout Indicator
Interrupt Rating200kA at 500V AC, 50kA at 500V DC, 50 kA @ 500 VAC
Interrupt Rating DC50kA
Interrupt Rating, Interrupt Rating AC200 kA
Interrupt Rating:200 kAIC at 300 Vdc50 kAIC at 300 Vdc
Item Type, Type:High speed cylindrical fuse
Length3-5/8", 3.5827 in.
Length (Straight Wireway)3 5/8 in
ManufacturerEaton Bussmann, Cooper Bussmann, Bussmann
Manufacturer Standard Lead Time9 Weeks
Manufacturer, MfrEaton - Bussmann Electrical Division
Melting I?t1900
MountingBolt On
Mounting Centers2.89 "
Mounting TypeRequires Holder, Stud Mount
Mounting, Mounting Style, Mounting:Stud
Net Weight0.45 lbs
PackageBulk
Package / CaseCylindrical, Blade Terminal (Bolt)
Package TypeCenter Bolted
Package/Case500V/200A
Primary TypeSingle Use Fuses
ProductSpecialty Fuses
Product CategoriesFuse
Product Series, SeriesFWH
Product StatusActive
RoHs StatusLead free/RoHS Compliant
SeriesFWH Series, FWH_A/B, FWH-B
ShapeRectangular
Size / Dimension1.156" Dia x 1.836" L (29.36mm x 46.63mm)
Size, Size:1.156 In Diameter X 3.625 In Length
Special FeaturesLow Arc Voltage, Excellent DC Performance, Superior Cycling Capability
SpeedFast Acting
Standard, Standard:UL Recognized ,CSA Certified,RoHS Compliant,CE Marked
StandardsCE, CSA Certified, UL Recognized
Sub Brand, Sub Brand:Bussmann Series
Termination StyleBolt Down
TypeCylindrical Fuses, High Speed North American Fuse
UNSPSC39121625, 39121628
UPC, UPC Code051712795869
Visual IndicationNonindicating
Voltage (AC), Voltage Rating - AC500 VAC
Voltage (DC), Voltage Rating - DC500 VDC
Voltage Rating500 Vac, 500 Vdc
Voltage Rating DC, Voltage Rating:500 V
Volts AC, Volts DC500

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
RadwellFWH-200B70.0670.061In StockBUSSMANN70.06 @ Qty: 1+
thumbzoomZoroG315158384.9684.961315Eaton Bussmann0.3584.96 @ Qty: 1+
Dale-ElectricFWH-200B86.4886.481In StockCooper Bussmann86.48 @ Qty: 1+
thumbzoomGalcoFWH-200B-BUSS86.586.513Bussmann8.586.5 @ Qty: 1+
WaldomEATON FWH-200B93.7493.741In StockEaton93.74 @ Qty: 1+
thumbzoomkempstoncontrols.co.ukFWH-200B95.924497595.9244975160Bussmann95.9244975 @ Qty: 1+
thumbzoomCarlton Bates Company0517127958698.6598.651In StockEATON BUSSMANN SERIES98.65 @ Qty: 1+
thumbzoomWalker IndustrialFWH-200B102.19102.191In Stock10Cooper Bussmann102.19 @ Qty: 1+
thumbzoomsustainablesupply.comC1210788107.54107.541In StockEaton0.35107.54 @ Qty: 1+
thumbzoomAllfusesFWH-200B112.04112.04130Bussmann112.04 @ Qty: 1+
Mouser504-FWH-200B121.51121.5114Cooper Bussmann121.51 @ Qty: 1+
VericalFWH-200B138.49138.4912Cooper Bussmann138.49 @ Qty: 1+
Graybar95004301148.3328148.332814Bussmann (Eaton)148.3328 @ Qty: 1+
SuperbreakersFWH-200B150.8150.8139EATON BUSSMANN150.8 @ Qty: 1+
thumbzoombscsource.comFWH200B154.69154.691In StockCooper Bussmann154.69 @ Qty: 1+
thumbzoomPlatt.com0666842159.18159.18111Eaton/Bussmann Series159.18 @ Qty: 1+
standardelectricsupply.com2190106166.83166.831In StockBussmann166.83 @ Qty: 1+
Future Electronics7028358169.104777.878410In StockEaton169.104 @ Qty: 10+
thumbzoomRaptor SuppliesAE8QUG175.2563475175.25634751In StockBUSSMANN175.2563475 @ Qty: 1+
steinerelectric.com61379182.33182.331In StockBUSSMANN182.33 @ Qty: 1+
crescentelectric.com180674197.12197.12124Eaton Bussmann series197.12 @ Qty: 1+
AmazonTPB00FV1PZY4197.71197.711In Stock5BUSSMANN197.71 @ Qty: 1+
thumbzoomNational Supply Network75382739197.98514.7485In StockCooper Bussmann197.98 @ Qty: 5+
us.rs-online.com70150660208.58208.58127Bussmann by Eaton208.58 @ Qty: 1+
thumbzoomDigi-Key5435001212.31212.311In StockEaton - Bussmann Electrical Division212.31 @ Qty: 1+
thumbzoomNewark02B3017220.8220.81In StockEATON BUSSMANN220.8 @ Qty: 1+
Airline HydraulicsBUSSMANN FWH-200B293.03293.031In StockCooper Bussmann293.03 @ Qty: 1+
