WEG CFW080100TGN4A1Z
WEGzoom

WEG CFW080100TGN4A1Z

mpn:
CFW080100TGN4A1Z
brand:
WEG
manufacturer:
WEG
MPN:
CFW080100TGN4A1Z
Description:
CFW080100TGN4A1Z CFW08 5HP 10A 460V N4X VFD - CFW
Weight:
5.0
Weight:
4.0 LB
Preferred Price:
1474.99
Price:
1474.99
Min Simple Price:
833.8
Absolute Min Price:
1183.16
Min Price:
1183.16
Dimensions:
[13.0, 12.0, 10.0]
qty:
21
simpleSku:
jI0Mjg:::CFW080100TGN4A1Z
sku:
jI0Mjg::QW:CFW080100TGN4A1Z@y0
condition:
11
seller:
Walker Industrial
amzMan:
weg
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Accepts Input Control Signal, Digital Readout, Dynamic Braking, Key Pad LockoutYes
Adjustable Acceleration Time, Adjustable Deceleration Time0 - 999 sec.
Adjustable Acceleration Time, Adjustable Deceleration Time0 to 999 sec
Amps (Max Load), Drive AMPS, Rated current (ND)10
ApplicationCentrifugal Pumps, Conveyor Belts, Cutting and Welding Machines, Dryers/Rotary Ovens, Extruders, Fans/Exhausters, Granulators/Pelletizers, Multimotors and Multipumps, Process Dosing Pumps, Roller Tables, Rotary Filters, Stirrers/Mixers, Winding Machines/Uncoiling Machines
Braking Resistor Included1
ConditionNew
ConfigurationWith options
Control MethodPWM ( Pulse width Modulation)
Control Method, Control TypeKeypad, Remote
Control TypeKeypad/Remote
Country of Origin (subject to change)Brazil
Depth8.5 in
Description:INVERTER USCFW080100T3848EON4A1Z
Dimensions10.4 x 6.5 x 8.5
Display TypeLED
DisplaysLED Touch Screen, Motor Speed, Frequency, Voltage, Current, Last Fault, Heat sink Temperature, Drive Status
Drive SeriesCFW08 Wash
EnclosureTotally Enclosed
Enclosure, Enclosure RatingNEMA 4X
Estimated Weight5.00
For Use With3-Phase Squirrel Cage Induction Motor
FrameA
Frame Size2
Height10.4 in
HP, HP (Max), Motor HP5
Input Frequency50/60 Hz
Input Phase AC, Output Phase ACThree
Input Phase, Input Phase AC, Output Phase, Output Phase AC3
Input phasesThree-phase
Input Power Supply3-Phase 460V
Input VoltageThree-phase input voltage.
Input Voltage Range200V AC to 480V AC
Input Voltage, Output Voltage380-480V
Input Voltage, Output Voltage480V AC
Input Voltage, Output Voltage480VAC
Input Voltage, Output Voltage460
ItemVariable Frequency Drive
Item ConditionFactory New
Key Pad LockoutEnclosure Padlock
ManufacturerWEG Electric, WEG
Manufacturer, Supplier:WEG ELECTRIC CORP
Max. HP, Maximum Output Power5 hp
Max. Output Amps, Maximum Output Current10 A
MFG Part #:, Part NumberCFW080100TGN4A1Z
ModelWashdown VFD (G), CFW08
Motor Volts460 V
Output Frequency Range0 to 300 Hz
Output TypeDigital
Overall Depth8 1/2 in
Overall Height10 3/8 in
Overall Width6 1/2 in
Power supply380-480 V
ProtectionDC Bus Over and Under Voltage and External Fault, Drive Over Temperature, Motor Overload, Output Phase-to-Phase and Phase-to-Ground Short Circuit, Over Current, Motor Overload, Short Circuit
RFI filterWithout filter
SeriesCFW-08
StandardsUL, cUL, CE, Ghost, IRAM, UL, cUL, CE
Start/Stop ControlProgrammable
Starting Torque150%
Switching Frequency2.5 / 5 / 10 / 15 kHz adjustable swiching frequency
UPC:7894171786930
Weight13.700000
Width6.5 in
With Bypass / No BypassNo Bypass
With Line Contactor / No Line ContactorNo Line Contactor

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomWalker IndustrialCFW080100TGN4A1Z833.8833.81In Stock17WEG833.8 @ Qty: 1+
thumbzoomZoroG7489772871.7871.71In StockWeg13.59871.7 @ Qty: 1+
AmazonTPB00BC89RQW890.18890.181In Stock2WEG890.18 @ Qty: 1+
thumbzoomDealers ElectricCFW080100TGN4A1Z919.3919.31In StockWeg5.0919.3 @ Qty: 1+
thumbzoommotorsandcontrol.comCFW080100TGN4A1Z970.25970.251In StockWEG Electric5.0970.25 @ Qty: 1+
thumbzoommotionindustries.com048666401012.421012.421In StockWEG Electric Corporation1012.42 @ Qty: 1+
thumbzoomsustainablesupply.comC29485081032.891032.891In StockWEG13.591032.89 @ Qty: 1+
thumbzoomindustrialrefrigerationparts.comCFW080100TGN4A1Z1118.031118.031In StockWEG13.71118.03 @ Qty: 1+
grainger.caWWG32J5911195.138090221195.138090221In StockWEG13.591195.13809022 @ Qty: 1+
kscdirect.comWEG CFW080100TGN4A1Z1217.371217.371In StockWEG ELECTRIC CORP1217.37 @ Qty: 1+
thumbzoomRadwellCFW080100TGN4A1Z1400.01400.01In StockWEG1400.0 @ Qty: 1+
thumbzoomRaptor SuppliesAC6BDP2180.3520962180.3520961In StockWEG2180.352096 @ Qty: 1+
B00BC89RQW
WEG CFW080100TGN4A1Z

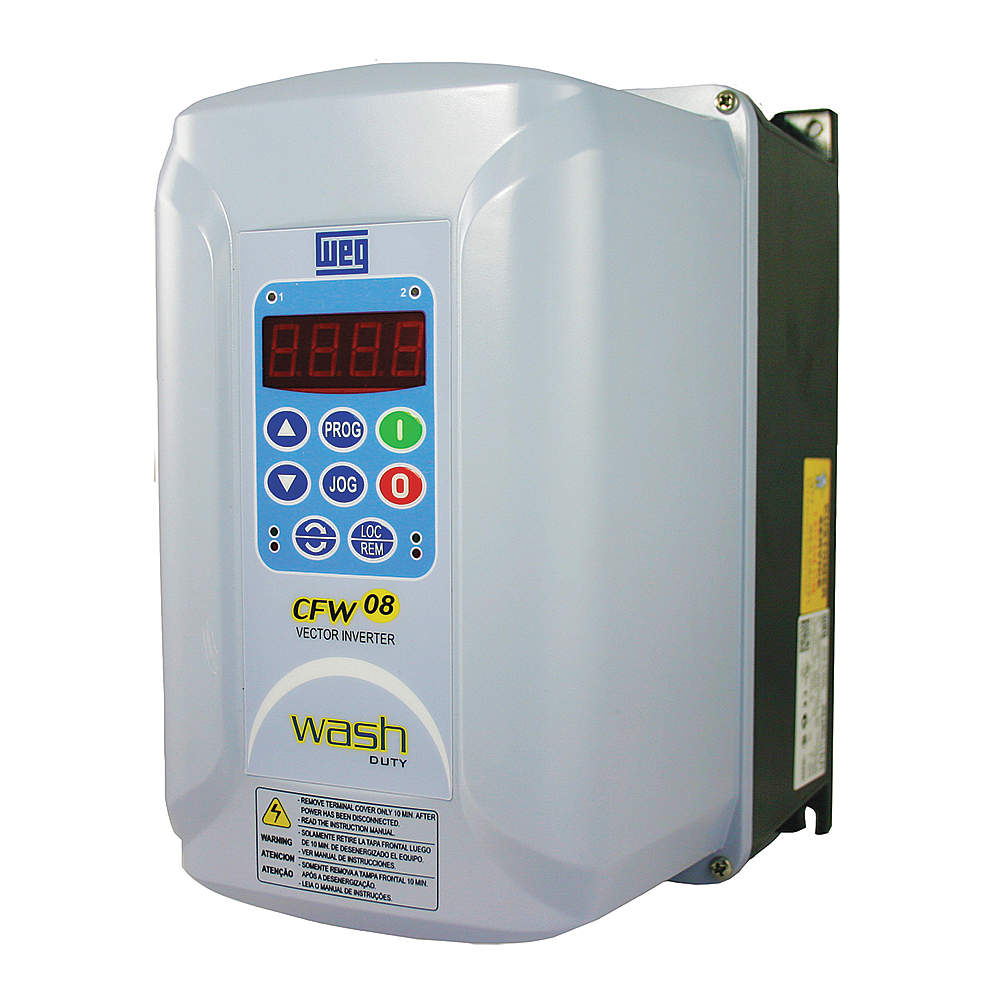

WEG CFW080100TGN4A1Z CFW08 Series Variable Frequency Drive, 5 HP, 10 A, 460 V, 3 Phase Input, 3 Phase Output

WEG CFW080100TGN4A1Z CFW08 Series Variable Frequency Drive, 5 HP, 10 A, 460 V, 3 Phase Input, 3 Phase Outputzoom
