brand:
manufacturer:
Description:

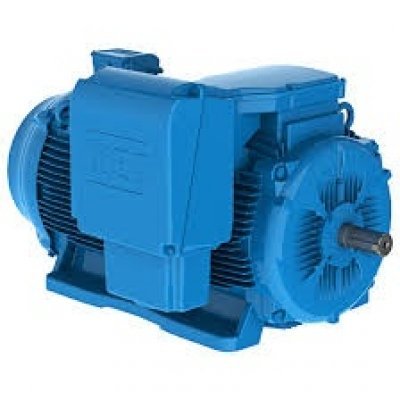

The 40012ET3X5809-W50MV is produced by WEG and is described as a WEG 40012ET3X5809-W50MV W50 MV Stk 400HP 6P 2.3/4.16kV MV STOCK
Weight:
6503.0
Weight:
6503.0 LB
Preferred Price:
84040.09
Price:
84040.09
Min Simple Price:
47480.28
Absolute Min Price:
67421.99
Min Price:
67421.99
qty:
21
simpleSku:
NTY0MA:::40012ET3X5809-W50MV
sku:
NTY0MA::H9:40012ET3X5809-W50MV@y0
condition:
11
seller:
Walker Industrial
amzMan:
weg electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amperage Rating | 100/56.2 A |
| Bearing Type | Ball |
| Classification | Medium Duty |
| Condition | New |
| Construction, Material | Cast Iron |
| Description: | MOTOR 400HP 6P 5809/10 WFH2 W50 |
| Dimensions | 77.964 in L |
| Drive End Flange Type | Standard |
| Enclosure, Enclosure Type | TEFC |
| Estimated Weight | 6503.00 |
| Explosion Proof Rating | **See Attached Data Sheet |
| FL Amps | 100/56.2 |
| FL Efficiency | 95.00 |
| Frame | 5810, 5809, 5809/10 |
| Frame Remarks, Product Type | Medium Voltage |
| Frequency Rating | 60 Hz |
| Hertz, Hz | 60 |
| Horsepower | 400 hp |
| HP | 400 |
| Insulation Class | Class F |
| Item Condition | Factory New |
| Manufacturer | WEG Electric, WEG |
| Manufacturer, Supplier: | WEG ELECTRIC CORP |
| MFG Part #:, Part Number | 40012ET3X5809-W50MV |
| Model | 13305566 |
| Mounting | Foot Mount |
| Mounting Type | Foot |
| Notes | ** 1.0 SERVICE FACTOR WHEN USED ON VFD. ** ALL MOTORS ARE BI-DIRECTIONAL EXCEPT 3600RPM MOTORS 250HP AND LARGER ARE CW ROTATION. CCW FANS AVAILABLE AS A MODIFICATION ** STANDARD WITH 100OHM PLATINUM STATOR RTDS (2/PH) AND BEARING RTDS (1/BRG) ** STANDARD WITH 120V, SINGLE PHASE SPACE HEATERS ** SUITABLE FOR 10:1 VT, 2:1 CT VFD SPEED RANGES |
| Number of Speeds, Service Factor | 1 |
| Phase | 3, 3 ph |
| Rotation | CW/CCW |
| RPM | 1100 - 1200 |
| RPM, Speed (RPM) | 1200 |
| Shaft Size | 3-7/8 in Dia |
| Special Features | Severe Duty Motors |
| Speed | 1200 rpm |
| Temperature Rating | -20 to 40 deg C Ambient |
| UPC: | 7909265847685 |
| Voltage | 2300V, 4160V |
| Voltage, Volts | 2300/4160 |
| Weight | 6537.200000 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Walker Industrial | 40012ET3X5809-W50MV | 47480.28 | 47480.28 | 1 | In Stock | 17 | WEG | 47480.28 @ Qty: 1+ | |
 | Dealers Electric | 40012ET3X5809-W50MV | 48237.37 | 48237.37 | 1 | In Stock | Weg | 6503.0 | 48237.37 @ Qty: 1+ | |
 | motorsandcontrol.com | 40012ET3X5809-W50MV | 48646.65 | 48646.65 | 1 | In Stock | WEG Electric | 6503.0 | 48646.65 @ Qty: 1+ | |
| kscdirect.com | WEG 40012ET3X5809-W50MV | 53950.91 | 53950.91 | 1 | In Stock | WEG ELECTRIC CORP | 53950.91 @ Qty: 1+ | |||
 | industrialrefrigerationparts.com | 40012ET3X5809-W50MV | 54341.25 | 54341.25 | 1 | In Stock | WEG | 6537.2 | 54341.25 @ Qty: 1+ | |
| motionindustries.com | 06973775 | 84790.16 | 84790.16 | 1 | In Stock | WEG Electric Corporation | 84790.16 @ Qty: 1+ |
