| 55% Thread Drill Size | 8.90 mm |
| 65% Thread Drill Size | 11/32 in |
| 75% Thread Drill Size, Drill Bit Size | 8.50mm |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subject to change) | India |
| Cutting Direction - Machining, Spiral Direction, Thread Direction | Right Hand |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Helix Angle | 40 Degrees |

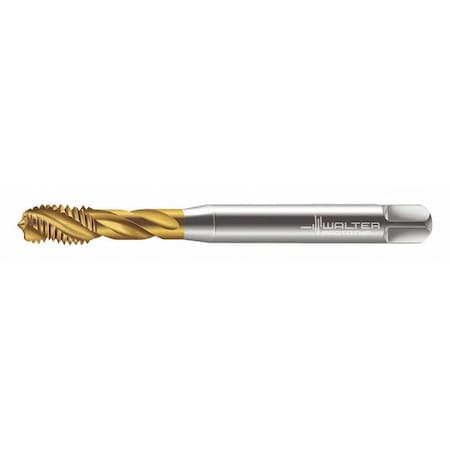

| Item | Spiral Flute Tap |
| List Number | 7051775 |
| Measurement System, Tap Dimension Type, Tap Thread Type | Metric |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 107.50mm |
| Pitch Diameter Limit | 6H |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper |
| Secondary Material Application ISO Code | K, N |
| Series | Paradur Uni |
| Shank Dia. | 10.00mm |
| Shank Length | 50.00 mm |
| Shank Type - Machining | Straight |
| Square Size | 8.00mm |
| Standards, Tap Shank Standard | DIN 371 |
| Tap Chamfer | Plug |
| Tap Finish | TiN |
| Tap Material | High Speed Steel |
| Tap Size | M10 |
| Tap Style | Spiral Flute |
| Tap Thread Size | M10-1.50 |
| Thread Length | 15.00mm |
| Thread Limit, Thread Limit / Class of Fit | D4, D5 |
| Thread Pitch | 1.50mm |
| Thread Size | M10x1.5 |
| Thread Standard | Metric Coarse |
