mpn:
manufacturer:
MPN:
Preferred Price:
9.85
Price:
9.85
Min Simple Price:
4.56
Absolute Min Price:
7.39
Min Price:
7.39
Dimensions:
[3.0, 1.0, 1.0]
qty:
21
simpleSku:
DA1MjQ:::5499911-9
sku:
DA1MjQ::QK:5499911-9@y0
condition:
11
seller:
Future Electronics
amzMan:
te connectivity
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | Signal |
| Applications, Contact Material, Ingress Protection, Insulation Material, Mated Stacking Heights | - |
| Base Product Number | 5499911 |
| Category | Connectors, Interconnects |
| Color, Insulation Color | Black |
| Connection Material | Brass, Phosphor Bronze |
| Connector Terminates To | Printed Circuit Board |
| Connector Type | Header |
| Contact Finish | Gold Plated |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15.0?in (0.38?m) |
| Contact Finish Thickness - Post | 100.0?in (2.54?m) |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.155" (3.94mm) |
| Contact Plating Thickness | 15 ?in |
| Contact Shape | Square |
| Contact Type | Male Pin, Pin |
| Current Rating | 1 A |
| Current Rating (Amps) | 1A per Contact |

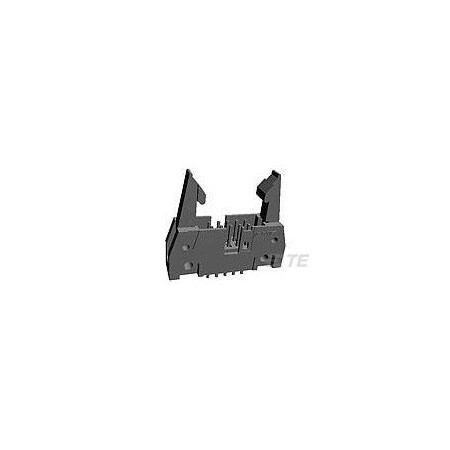

| Description | CONN HEADER VERT 40POS 2.54MM |
| Detailed Description | Connector Header Through Hole 40 position 0.100" (2.54mm) |
| Digi-Key Part Number | 5499911-9-ND |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Features | Keying Slot, Mounting Flange, With Ejection Latches |
| Flammability Rating | UL 94 V-0 |
| Height | 13.94 mm |
| Hole Center to Center | 2.54 mm |
| Insulation Height | 0.549" (13.94mm) |
| Item | Connector |
| Length | 2.76 in |
| Manufacturer Product Number | 5499911-9 |
| Manufacturer Standard Lead Time | 14 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Material | Glass-Filled Nylon/Polyester |
| Material Flammability Rating | UL94 V-0 |
| Max. Temp. | 105?C |
| Max. Voltage | 250V AC |
| Mounting Type, Terminal Type | Through Hole |
| Number of Contacts, Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature | -65?C ~ 105?C |
| Overall Contact Length | 0.684" (17.37mm) |
| Package | Tray |
| Package Quantity | 1 |
| Pitch - Mating, Row Spacing - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Series | AMP-Latch |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Terminal Finish | Tin Plated |
| Termination | Solder |
| Voltage Rating | 250VAC |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Future Electronics | C012927356 | 4.56 | 528.048 | 288 | 26 | TE Connectivity | 4.56 @ Qty: 288+ | |||
| Waldom | TE CONNECTIVITY AMP BRAND 5499911-9 | 4.78 | 31.548 | 15 | 2176 | TE CONNECTIVITY/AMP BRAND | 4.78 @ Qty: 15+ | |||
| Newark | 19R2346 | 6.35 | 735.33 | 288 | In Stock | AMP - TE CONNECTIVITY | 6.35 @ Qty: 250+ | |||
 | Zoro | G705912988 | 7.09 | 46.794 | 15 | In Stock | Te Connectivity | 7.09 @ Qty: 15+ | ||
 | Digi-Key | 2285227 | 7.41 | 48.906 | 15 | 2176 | TE Connectivity AMP Connectors | 7.41 @ Qty: 15+ |
