mpn:
brand:
manufacturer:
MPN:
Description:

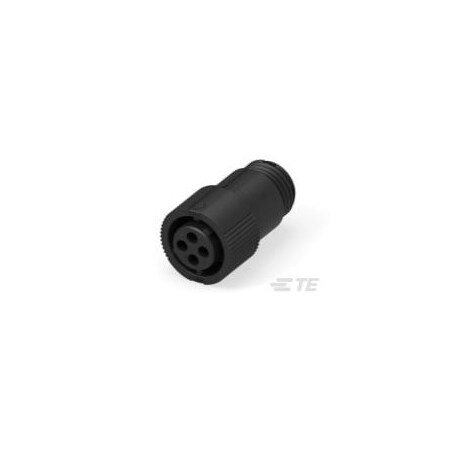

Connector Mini CPC Sealed Plug Assy 4 Pos. Shell Sz. 8 IP 67 Std Key
Weight:
0.04
Weight:
0.008 LB
Preferred Price:
29.48
Price:
29.48
Min Simple Price:
3.21
Absolute Min Price:
22.9
Min Price:
22.9
Dimensions:
[1.0, 1.0, 1.0]
qty:
800
simpleSku:
NjI5OA:::1445390-3
sku:
NjI5OA::3S:1445390-3@x5
condition:
11
seller:
Onlinecomponents.com
amzMan:
te connectivity
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Accepts Wire Insulation Diameter Range | 1.5 ? 2.39?mm?[?.059 ? .11?in?] |
| Angle | Straight |
| Application | Commercial |
| Circuit Application | Power & Signal |
| Color, Housing Color | Black |
| Connector | Wire & Cable |
| Connector System | Wire-to-Wire |
| Connector Type | Plug Housing |
| Contact Current Rating (Max) | 7.5 |
| Contact Plating | Gold Over Tin |
| Contact Shape | Circular |
| Contact Size, Includes, Mounting Feature, Shell Finish, Shell Size, MIL | - |
| Contact Type | Socket, Pin |
| Contact Type, Termination Method to Wire | Crimp |
| Family Name | CPC Series |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Fluid Resistance | Immersion |
| Gender | Panel Plug |
| Housing Material, Insert Material, Material, Shell Material | Thermoplastic |
| Housing Type | Plug, Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Diameter | 0.059-0.110 " |
| IP Rating | IP67 |
| Item, Product Type | Housing |
| Material Flammability Rating | UL94 V-0 |
| Mating Alignment, Mating Retention | With |
| Mating Retention Type | Threaded Coupling |
| Mating Type | Bayonet |
| Mfr | TE Connectivity AMP Connectors |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Contacts, Number of Positions, Number of Signal Positions | 4 |
| Number of Power Positions | 0 |
| Operating Temperature | -55?C ~ 105?C |
| Operating Temperature Range | -55 ? 105??C?[?-67 ? 221??F?] |
| Operating Voltage | 250 |
| Orientation | A |
| Package Quantity | 1 |
| Packaging Method | Bag |
| Packaging Quantity | 100 |
| Part Status | Active |
| Primary Type | Standard Circular Plastic |
| Reverse Gender | Standard |
| Screw | 1/2-20 UNF-2A |
| Seal Type | Wire Entry Seal |
| Sealable | Yes |
| Series | Mini CPC Series |
| Shell Size | 8 |
| Shell Size - Insert | 8-4 |
| Shell Type | All Plastic |
| Shielded | No |
| Shielding | Unshielded |
| Type | For Female Sockets, Socket, Plug, CPC |
| UL Flammability Rating | UL 94 V-0 |
| Wire Size | 30 ? 18 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 1445390-3 | 3.21 | 3.21 | 1 | 627 | TE Connectivity / AMP Brand | 3.21 @ Qty: 1+ | |||
| Waldom | TE CONNECTIVITY AMP BRAND 1445390-3 | 4.48 | 29.568 | 15 | 188 | TE CONNECTIVITY/AMP BRAND | 4.48 @ Qty: 15+ | |||
| Hotenda | H744829 | 5.68 | 5.68 | 1 | In Stock | TE Connectivity AMP Connectors | 5.68 @ Qty: 1+ | |||
 | Carlton Bates Company | 74114919819 | 6.49 | 6.49 | 1 | In Stock | TE CONNECTIVITY | 6.49 @ Qty: 1+ | ||
| Arrow | 1445390-3 | 7.954 | 7.954 | 1 | 267 | TE Connectivity | 7.954 @ Qty: 1+ | |||
 | Digi-Key | A30003-ND | 7.97 | 7.97 | 1 | In Stock | TE Connectivity AMP Connectors | 7.97 @ Qty: 1+ | ||
 | Newark | 91C5918 | 7.99 | 2561.594 | 800 | In Stock | TE CONNECTIVITY | 7.99 @ Qty: 800+ | ||
 | Powell Electronics | 1445390-3 | 8.1279 | 2605.80474 | 800 | 4000 | TE Connectivity | 8.1279 @ Qty: 800+ | ||
| Mouser | 571-14453903 | 8.34 | 8.34 | 1 | 528 | TE Connectivity | 8.34 @ Qty: 1+ | |||
| TE Connectivity | 1445390-3 | 8.9159 | 8.9159 | 1 | 473 | TE Connectivity (TE) | 8.9159 @ Qty: 1+ | |||
| AmazonTP | B00DED1XW4 | 10.28 | 10.28 | 1 | In Stock | 5 | TE CONNECTIVITY | 10.28 @ Qty: 1+ | ||
 | TME | 1445390-3 | 10.43 | 10.43 | 1 | 15 | TE Connectivity | 10.43 @ Qty: 1+ | ||
| us.rs-online.com | 70086183 | 10.44 | 10.44 | 1 | 52 | TE Connectivity | 10.44 @ Qty: 1+ | |||
| AmazonSC | B00DED1XW4 | 13.28 | 13.28 | 1 | In Stock | TE+Connectivity | 13.28 @ Qty: 1+ | |||
 | Zoro | G001025382 | 77.5 | 77.5 | 1 | In Stock | Te Connectivity | 77.5 @ Qty: 1+ |
