| [Ue] Rated Operational Voltage | 120/240 V AC || 120 V AC || 48 V DC |
| Awg Gauge | AWG 14...AWG 2 aluminium/copper |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circuit Breaker Application | HACR and Switching Duty rated |
| Circuit Breaker Type | standard |
| Depth | 2.95 in |
| Electrical Connection | slotted box lugs, line side || slotted box lugs, load side |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free product |
| Height | 4.05 in |
| Line Rated Current | 10 A |
| Mercury Free, Rohs Exemption Information, Toxic Heavy Metal Free | Yes |
| Mounting Mode | unit mount |
| Product Certifications | CSA || IEC || UL Listed |

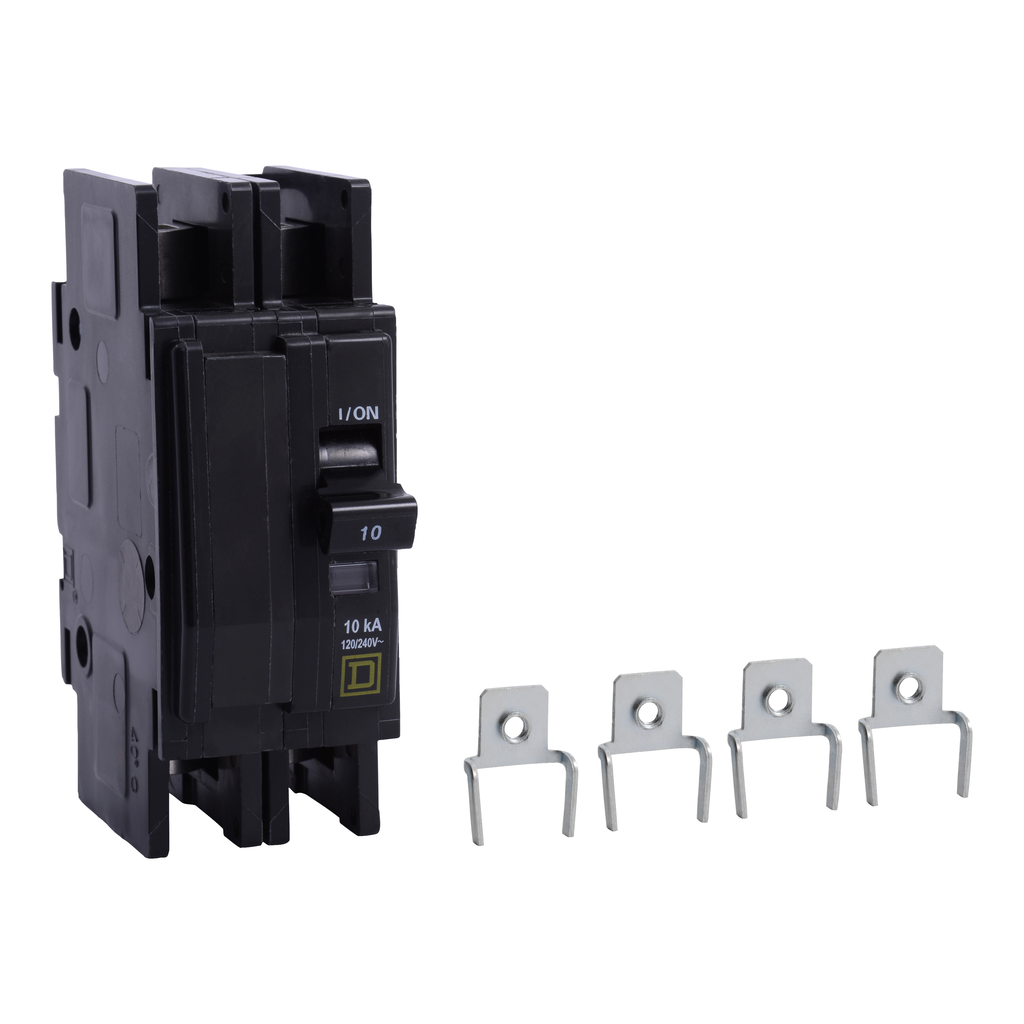

| Product Or Component Type | miniature circuit-breaker |
| Range Of Product | QOU |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Sustainable Offer Status | Green Premium product |
| Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
| Warranty | 18 months |
| Width | 1.5 in |
