| Accessibility For Operation | front |
| Ambient Air Temperature For Operation | 0-40 ?C || 0-50 ?C maximum with current derating of 2 % per ?C |
| Ambient Air Temperature For Storage | -20-60 ?C |
| Breaking Capacity | 100 kA |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1507014 |
| Color | Light gray RAL 7035) |
| Control Type | door-interlocked with rotary handle |
| Degree Of Protection | UL type 2 |
| Depth | 500 mm |
| Electromagnetic Compatibility | conducted EMC, class A EN 61000-6-4 |
| Enclosure Mounting | floor-standing |
| Environmental Characteristic | operating 3C2 IEC 60721-3-3 || operating 3S2 IEC 60721-3-3 || storage 3C3 IEC 60721-3-3 || storage 3S3 IEC 60721-3-3 |
| Environmental Disclosure | ENVPEP1507014 |
| Eu Rohs Directive | Compliant |
| Function Available | rear plenum with forced ventilation for high heat flow |
| Height | 2100 mm |
| Impregnation Material | conformal coated |
| Input Frequency | 50/60 Hz +/- 3 Hz auto sensing |
| Location Of Connection | top or bottom |
| Maximum Permissible Voltage | 1.1 x Un |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free | Yes |
| Mounting Location | indoor |
| Net Weight | 395 kg |
| Network Rated Voltage | 500-600 V AC |
| Neutral Protection Setting | not provided |
| Nominal Output Current | 47 A |
| Operating Mode | mains current balancing || harmonic cancellation || power factor correction |
| Poles Description | 3P |
| Product Certifications | RCM || ABS || CE || cULus |

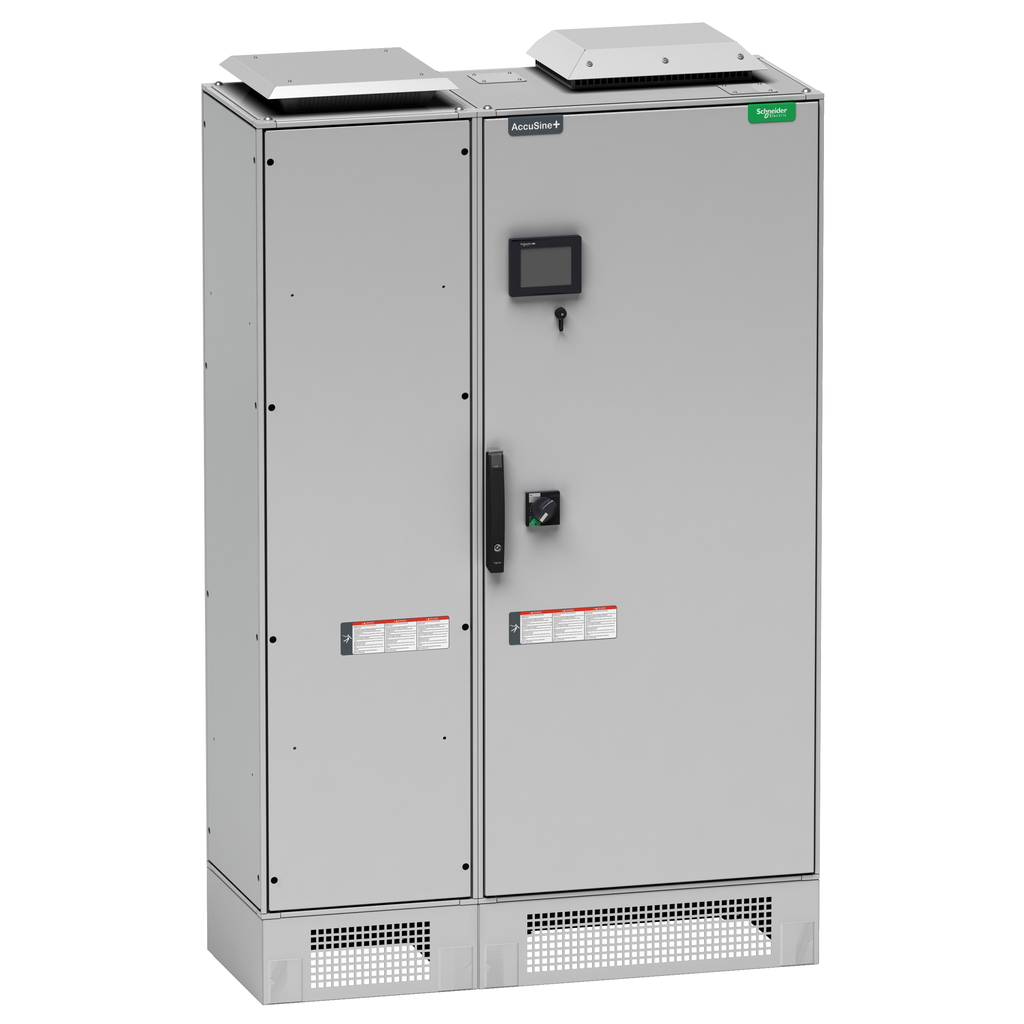

| Product Name | AccuSine PCS+ |
| Product Or Component Type | active harmonic filter |
| Protection Type | circuit breaker protection |
| Range Of Product | AccuSine |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reactive Power Rating | 49 kvar 600 V AC 50/60 Hz |
| Relative Humidity | 0-95 % |
| Standards | EN 61000-6-4 || CSA C22.2 No 14 || UL 60947-1 || UL 508 || EN 60439-1 || CSA C22.2 No 60947-1-07 |
| Sustainable Offer Status | Green Premium product |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width | 1300 mm |
| Wiring Mode | 3 or 4 wires |
