Attributes
| Key ^ | Value |
|---|---|
| Application | ADSL, DC-DC Converter, Forward, Push-Pull, VDSL |
| Brand | OEP |
| Depth | 28.7mm |

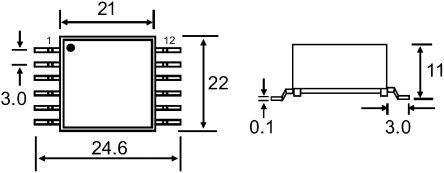

| Dimensions | 22 x 11 x 28.7mm |
| Direct Current Resistance DCR | 0.05 ?, 0.5 ? |
| Inductance | 10?H |
| Length | 22mm |
| Maximum Operating Frequency | 100kHz |
| Maximum Temperature | +70?C |
| Minimum Temperature | 0?C |
| Mounting Type | Surface Mount |
| Termination Type | Pin |
| Weight | 11g |
| Width | 11mm |
