- mpn182TTFBD6078
- brandname: Marathon Motors
- manufacturername: Marathon Motors

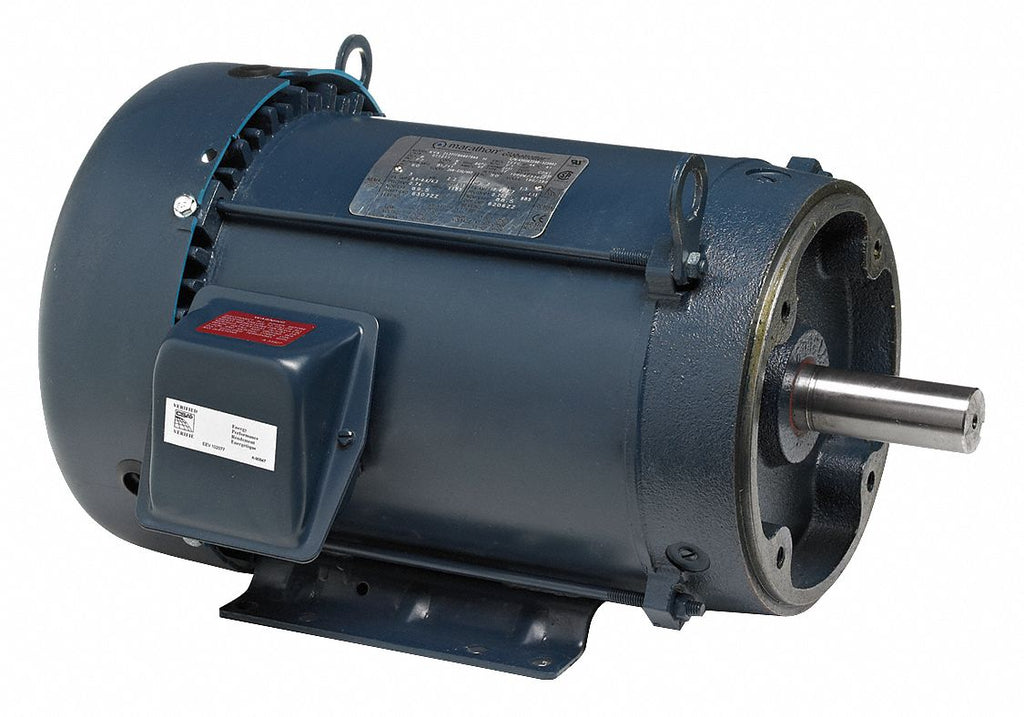

Marathon Motors 1-1/2 HP General Purpose Motor,3-Phase,1185 Nameplate RPM,Voltage 230/460,Frame 182TC
- Brand: CAI - MARATHON MOTORS
- PartNumber: 182TTFBD6078
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Capacitor Required | No |
| CC Number | CC003A |
| Construction | Rolled steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure | TEFC |
| Family Series | Marathon Electric Misce. |
| FL Amps | 4.6/2.3 |
| FL Efficiency | 87.5 |
| Frame | 182TC |
| Frame Material | Rolled steel |
| Full Load Amps | 4.6/2.3 |
| Green Certification or . | NEMA Premium(R) Rated |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| HP | 1.5, 1 1/2 |
| Hz | 60 |
| Ins. Class | F |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Item Number | 182TTFBD6078 |
| KW | 1.1 |
| Length Less Shaft | 13 1/8 in |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | GT1205A |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Footed |
| Nameplate RPM | 1,175 |
| NEMA Design | A |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 87.5 % |
| Number of Speeds | 1 |
| Overall Length | 15 7/8 in |
| Part Number | 182TTFBD6078 |
| Phase | 3, Three |
| Product Type | General Purpose |
| RPM Group | 1101-1200 |
| RPM Range | 1,101-1,200 |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 7/8 in |
| Speed (RPM) | 1175 |
| Standards | CE, CSA (LR2025), UL (E. |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 230V, 460V, 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Weight | 91 lb |
