| Backward Head Tilt Adjustment, Forward Head Tilt | 45 Degrees |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Cross Travel (In.) | 15-21/64 |
| Features | Certified Meehanite(R) Castings, Precision Bored and Honed Milling Head, High Precision Class 7 Spindle Bearings, Quick Spindle Feed Nut, Three-Stage Power Down feed with Automatic Atop, Heavy-Duty Spindle Brake, Three Precision Ground T-Slots, CSA, CUS, Following Strict Guidelines and Electrical Requirements, These JET Mills are CSA, CUS Certified |
| Feed Rate for Power Down Feed (In.) | 0.0015, 0.003, 0.006 |
| Head Angle (Deg.), Ram Swivel (Deg.) | 90 |
| Head Angle Front/Back (Deg.) | 45 |
| Horsepower, Motor HP, Quill Travel (In.) | 5 |
| Hz | 60 |
| Includes | Variable Speed Vertical Milling Machine, 3-X Accurate G2 Millport CNC Package, Spindle Safety Guard, Led Machine Lamp, Dual Locks On All Moveable Surfaces, Chip Pan, Draw Bar, Tool Box with Tools |

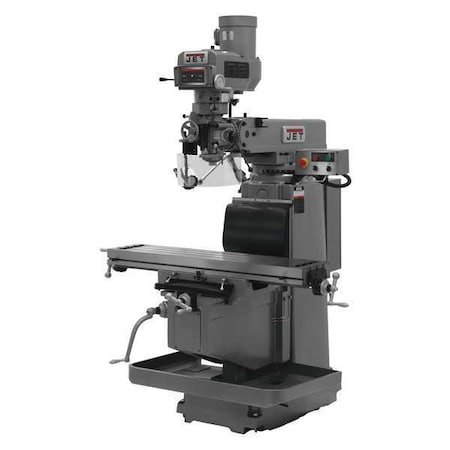

| Item | Knee/Column Milling Machine |
| Knee Travel (In.) | 19-1/4 |
| Left-Hand Head Tilt, Ram Turret Swivel, Right-Hand Head Tilt | 90 Degrees |
| Longitudinal Travel | 33-7/8 in |
| Longitudinal Travel (In.) | 33.88 |
| Max. Spindle Speed | 3,800 RPM |
| Max. Spindle To Column Distance | 27-3/4 in |
| Max. Spindle to Table Distance, Min. Spindle to Table Distance | 23 in |
| Max. Table Weight (lbs.) | 925 |
| Min. Spindle Speed | 80 RPM |
| Min. Spindle to Column Distance | 7-1/2 in |
| Number of T-Slots, Phase | 3 |
| Overall Depth | 92 1/8 in |
| Overall Height | 104 1/4 in |
| Overall Length | 79-7/8 in |
| Overall Width | 79-7/8" |
| Quill Dia. | 4 1/8 in |
| Quill Dia. (In.) | 4-1/8 |
| Ram Travel (In.) | 25 |
| Ram Travel Length | 25 in |
| Spindle Speed (RPM) | 80 to 3800 |
| Spindle Taper, Spindle Taper Size | R-8 |
| Spindle to Table (In.) | 23 |
| Spindle Travel Length | 5 in |
| T-Slot Size (In.) | 3-5/8 |
| Table Length | 12 in |
| Table Load Capacity | 925 lb |
| Table Size (In.) | 12 x 54 |
| Table Width | 54 in |
| Type | Variable Speed R8 |
| Voltage | 230/460V |
