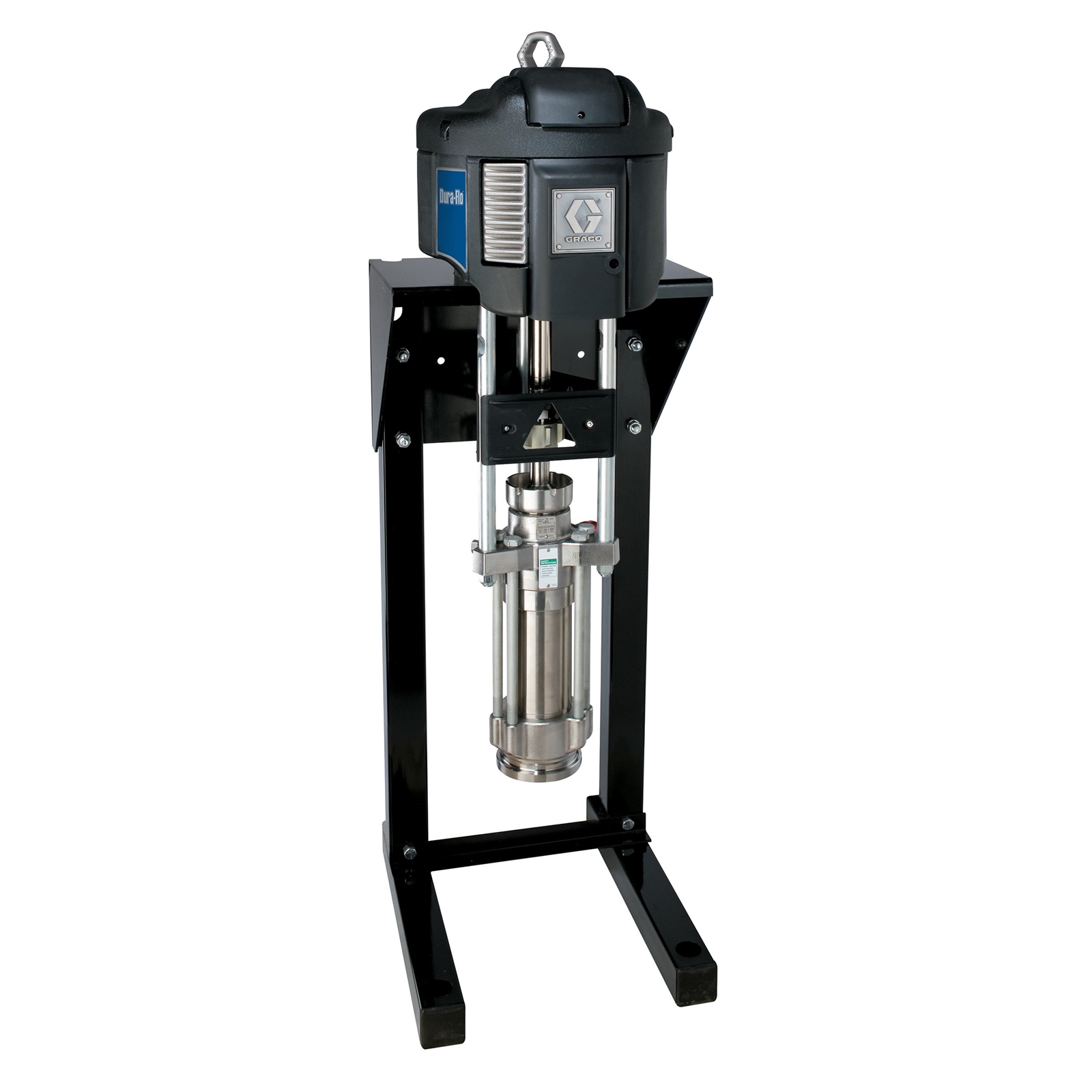

P21LC1 GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Air inlet size (cm) | 1.905 |
| Air inlet size (in) | 3/4 |
| Air inlet size (mm) | 19.05 |
| Air inlet thread gender, Fluid outlet thread gender | Female |
| Air inlet thread type, Fluid outlet thread type | NPT |
| Application | Supply |
| Compatible material | Solventborne;High Solids;Xirallic;CARC;Metallics;Stains;Varnish |
| Dimension uom code | IN |
| Division code | IPD |
| Fluid outlet size (cm) | 2.54 |
| Fluid outlet size (in) | 1 |
| Fluid outlet size (mm) | 25.4 |
| Fluid section type | 2-Ball |
| Includes | Carbon Steel Pump;Low Noise Exhaust Motor |
| Material, Wetted Material | Carbon Steel |
| Maximum air inlet pressure (bar) | 6.9 |
| Maximum air inlet pressure (kpa) | 690 |
| Maximum air inlet pressure (psi) | 100 |
| Maximum flow rate (gpm) | 3.5 |
| Maximum flow rate (l/min) | 13.25 |
| Maximum operating temperature (?c) | 82 |
| Maximum operating temperature (?f) | 180 |
| Maximum working pressure (bar) | 157 |
| Maximum working pressure (kpa) | 15700 |
| Maximum working pressure (mpa) | 15.7 |
| Maximum working pressure (psi) | 2270 |
| Motor type | Low Noise NXT |
| Mount type | Wall or Stand Mount |
| Portable | Non-Portable |
| Pump ratio | 21:1 |
| Seal Material | Xtreme;Leather |
| Type | Pneumatic Piston Pump |
