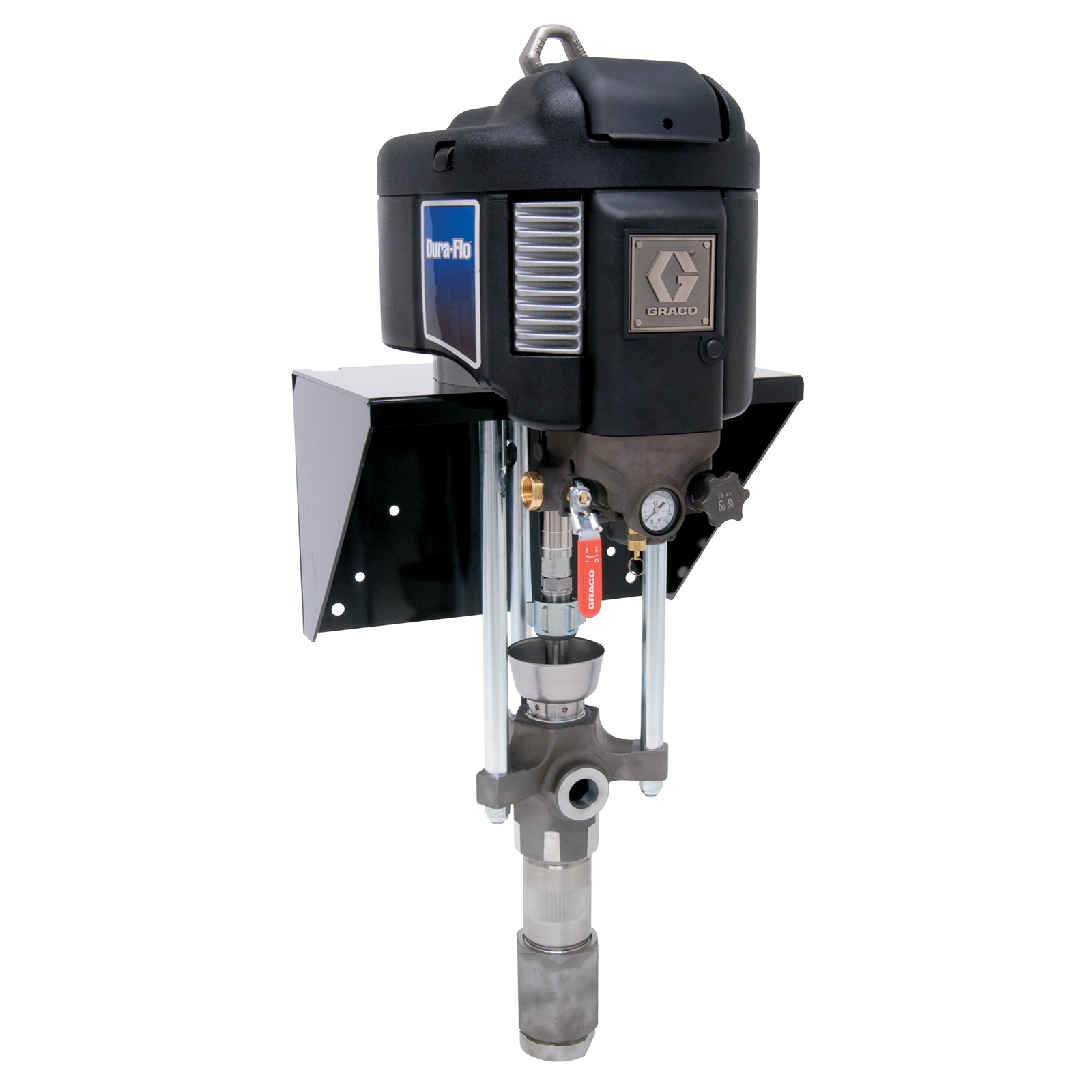

P21DSE GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application | Supply |
| Compatible material | Solventborne;High Solids;Xirallic;CARC;Metallics;Stains;Varnish |
| Dimension uom code | IN |
| Division code | IPD |
| Fluid outlet size (cm) | 2.54 |
| Fluid outlet size (in) | 1 |
| Fluid outlet size (mm) | 25.4 |
| Fluid outlet thread gender | Female |
| Fluid outlet thread type | NPT |
| Fluid section type | 2-Ball |
| Includes | Stainless Steel Pump;De-Icing Exhaust Motor;4 Leather/1 PTFE Packings |
| Material, Wetted Material | Stainless Steel |
| Maximum air inlet pressure (bar) | 6.9 |
| Maximum air inlet pressure (kpa) | 690 |
| Maximum air inlet pressure (psi) | 100 |
| Maximum continuous cycle rate (cpm) | 60 |
| Maximum flow rate (gpm) | 3.4 |
| Maximum flow rate (l/min) | 12.87 |
| Maximum operating temperature (?c) | 66 |
| Maximum operating temperature (?f) | 150 |
| Maximum working pressure (bar) | 157 |
| Maximum working pressure (kpa) | 15700 |
| Maximum working pressure (mpa) | 15.7 |
| Maximum working pressure (psi) | 2270 |
| Motor type | De-Icing NXT |
| Mount type | Wall or Stand Mount |
| Portable | Non-Portable |
| Pump ratio | 21:1 |
| Seal Material | Leather;PTFE |
| Type | Pneumatic Piston Pump |
