mpn:
brand:
manufacturer:
MPN:
Description:

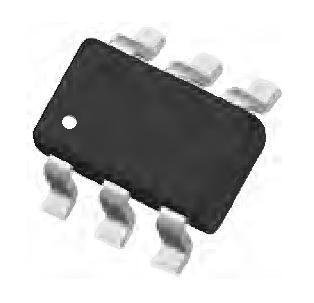

Bipolar (BJT) Transistor Array 2 NPN (Dual) Matched Pair 160V 200mA 300MHz 300mW Surface Mount SOT-26
Preferred Price:
1.41
Price:
1.41
Min Simple Price:
0.09
Absolute Min Price:
1.55
Min Price:
1.55
qty:
274
simpleSku:
ODY4NA:::DMMT5551S-7-F
sku:
ODY4NA::IC:DMMT5551S-7-F@y0
condition:
11
seller:
Hotenda
amzMan:
diodes incorporated
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Alternate Part No. | 621-DMMT5551S-7-F |
| Base Product Number | DMMT5551 |
| Brand | Diodes Incorporated |
| Case | SOT26 |
| Category | Discrete Semiconductor Products |
| Collector current | 0.2A |
| Collector- Base Voltage VCBO | 180 V |
| Collector- Emitter Voltage VCEO Max | 160 V |
| Collector-emitter voltage | 160V |
| Configuration | Dual |
| Current - Collector (Ic) (Max) | 200mA |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| Current gain | 50...250 |
| DC Collector/Base Gain hFE Min | 80 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 10mA, 5V |
| Emitter- Base Voltage VEBO | 6 V |
| Frequency | 100...300MHz |
| Frequency - Transition | 300MHz |
| Gain Bandwidth Product fT | 300 MHz |
| Kind of package | reel, |
| Manufacturer | Diodes Incorporated |
| Manufacturer Part No. | DMMT5551S-7-F |
| Maximum DC Collector Current | 0.2 A |
| Maximum Operating Temperature | + 150 C |
| Maximum Power Dissipation | 300 mW |
| Mfr | Diodes Incorporated |
| Minimum Operating Temperature | - 55 C |
| Mounting | SMD |
| Mounting Style | SMD/SMT |
| Mounting Type | Surface Mount |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Package/Case | SOT-26 |
| Packaging | Reel |
| Polarisation | bipolar |
| Power - Max | 300mW |
| Power dissipation | 300mW |
| Product Category | Transistors Bipolar - BJT |
| Product Status | Active |
| Series | DMMT5551S, - |
| Supplier Device Package | SOT-26 |
| Transistor Polarity | NPN |
| Transistor Type | 2 NPN (Dual) Matched Pair |
| Type of transistor | NPN x2 |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 5mA, 50mA |
| Voltage - Collector Emitter Breakdown (Max) | 160V |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Hotenda | H2038378 | 0.09 | 2.736 | 1 | 3000 | Diodes Incorporated | 0.09 @ Qty: 50+ | |||
| TME | DMMT5551S-7-F | 0.148 | 4.6176 | 3 | 50 | DIODES INCORPORATED | 0.148 @ Qty: 50+ | |||
 | Newark | 28AK8445 | 0.158 | 5.056 | 5 | 2420 | DIODES INC. | 0.158 @ Qty: 50+ | ||
| Digi-Key | 5218619 | 0.37145 | 11.29208 | 1 | 50 | Diodes Incorporated | 0.37145 @ Qty: 50+ | |||
 | swatee.com | DMMT5551S-7-F | 0.78 | 23.712 | 1 | 274 | Diodes Incorporated | 0.78 @ Qty: 50+ |
