- mpn2NKX3
- brandname: DAYTON
- manufacturername: DAYTON

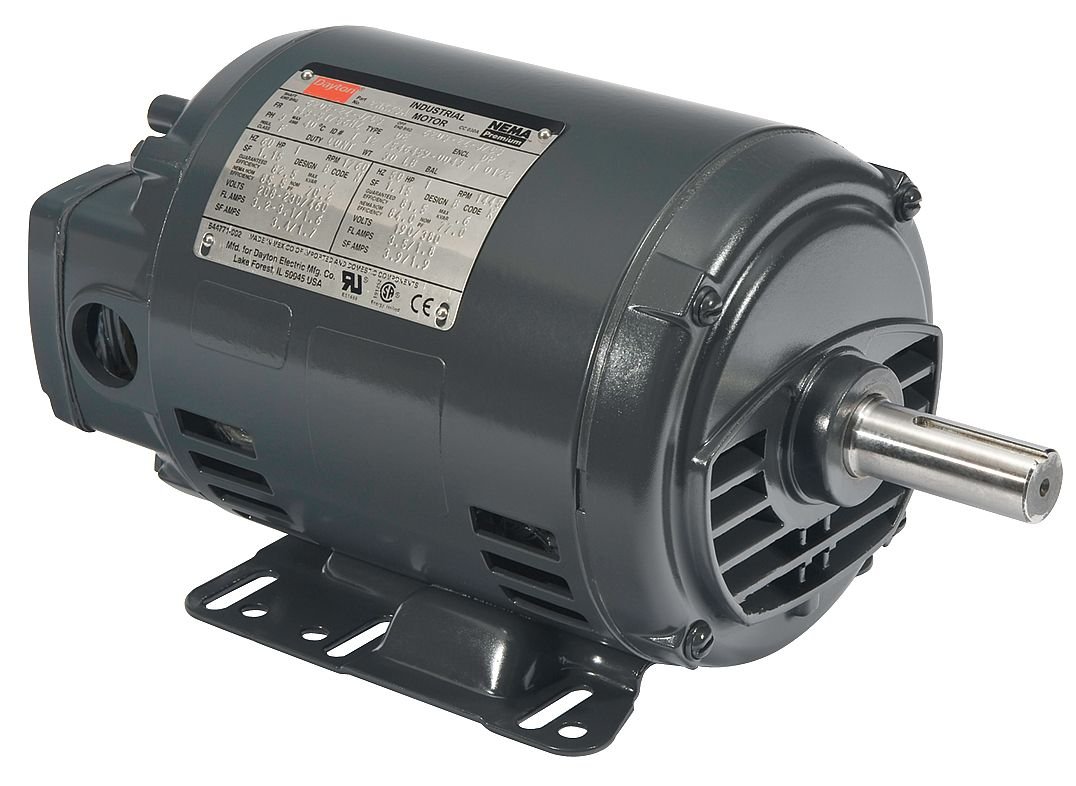

Dayton 1 HP General Purpose Motor,3-Phase,1760 Nameplate RPM,Voltage 230/460,Frame 143-5T/56HZ
- Brand: Dayton
- PartNumber: 2NKX3
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 3.2-3.2/1.6 |
| Bearings | Ball |
| Brand | Dayton |
| CC Number | CC030A |
| Cross Reference | 6AHZ7, 2NKX4, 2MXT4 |
| Current Stock | 42 |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 143-5T/56HZ |
| Full Load Amps | 3.2-3.1/1.60 |
| Green Certification or . | NEMA Premium(R) Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 1 |
| HP @ 50Hz | 1450 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Length Less Shaft | 10 1/2 in |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 10-1/2" |
| Motor Thermal Protection | None |
| Mounting | Rigid |
| Mpn | 2NKX3 |
| Nameplate RPM | 1,760 |
| No. of Speeds | 1 |
| Nominal Efficiency | 85.5 % |
| Number of Speeds | 1 |
| Overall Length | 12-7/8", 12 13/16 in |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1760 |
| RPM Range | 1,701-1,800 |
| Service Factor (SF) | 1.25 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 7/8" Keyed |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 39 lbs. |
| SKU | ZO-G0930474 |
| Standards | UL, CSA, CE, CE, CSA(25. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735228388 |
| Voltage | 208-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | AOS2NKX3 | 437.55940516 | 1 | In Stock | | DAYTON | 1.0 | 437.55940516 @ 1 |
| AmazonTP | B00AP6TN98 | 437.87 | 1 | In Stock | 3 | DAYTON | | 437.87 @ 1 |
 | Amazon | B00AP6TN98 | 440.09 | 1 | In Stock | | Dayton | | 440.09 @ 1 |
 | Zoro | G0930474 | 518.99 | 1 | 165 | | Dayton | 38.39 | 518.99 @ 1 |
 | simsupply.com | ZO-G0930474 | 601.32 | 1 | 42 | | Dayton | | 601.32 @ 1 |
| emotorpro.com | 2NKX3 | 658.68 | 1 | In Stock | | Dayton | 39.0 | 658.68 @ 1 |
 | sustainablesupply.com | C1551820 | 690.63 | 1 | In Stock | | Dayton | 38.39 | 690.63 @ 1 |
 | Raptor Supplies | AC2WJJ | 851.688864 | 1 | In Stock | | DAYTON | | 851.688864 @ 1 |
