Description:

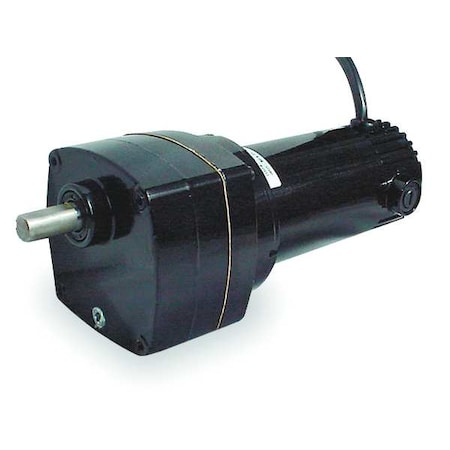

DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 71 RPM, Maximum Torque 83 in-lb, Overhung Load Capacity 230 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 25:1, Input Horsepower 1/10 hp, Output Shaft Diameter 1/2 in, Bearing Type Ball on Motor, Needle Throughout
Attributes
| Key ^ | Value |
|---|---|
| Dimension D | 3.15 in |
| Dimension L | 8 39/50 in |
| Dimension X | 7.94" |
| Full Load Amps | 1.08 A |
| Gearmotor Enclosure | Totally Enclosed Nonventilated |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Rotation | CW/CCW |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gearmotor Type, Item | DC Gearmotor |
| Gearmotor Voltage | 90V DC |
| Input HP | 1/10 |
| Length Less Shaft | 8.75 in |
| Max. Torque | 83 in-lb |
| Nameplate RPM | 71 RPM |
| Output Shaft Diameter, Shaft Dia. (Dimension U) | 1/2 in |
| Output Shaft Length | 1 in |
| Overall Length | 9.75 in |
| Rear Shaft Encoder/Pulse Generator Mounting | Yes |
| Replacement Brushes | 6YHY6 |
| Shaft Length (Dimension V) | 1" |
| Standards | C-UL Recognized, UL Recognized |
