Description:

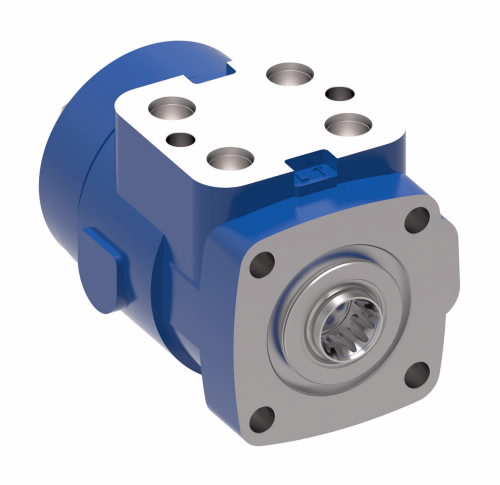

401-7132-04 DANFOSS | Search our online catalog of Mobile Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Additional ports | G .250-19 BSP Straight Thread Load Sensing Port |
| Application | Construction Machinery, Agriculture Machinery, Heavy Duty Equipment, Marine, Forestry Machinery, Mining Equipment |
| Design code11 | 1 |
| Eccn | EAR99 |
| Flow amplification, Special features17, Sub brand | None |
| Flow rate12 | 22.7 LPM |
| Fluid compatibility13 | See Eaton Technical Bulletin 3-401 |
| Housing material | Ductile Iron |
| Icc2 | Steering Control Unit (SCU) |
| Identification | Eaton Product Number On Nameplate |
| Inlet or load sense relief valve setting | 175 bar |
| Inlet pressure rating, Working pressure max | 190 bar |
| Input torque, Unit type21 | Standard |
| Integral valves | Yes |
| Load circuit | Non Reaction |
| Main displacement | 100 cubic centimetre per revolution |
| Maximum back pressure | 35 bar |
| Maximum flow rate | 45 litre per minute |
| Mechanical interface | Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa |
| Model Code | ASLA21A05ACA162534EADAAA3AAA10A |
| Mounting threads | 4x M10x1.5 Mouting Face |
| Net pack quantity | 0 |
| Neutral circuit | Load Sensing-Dynamic Signal |
| Paint | Black |
| Ports | 4x G.5 BSP Straight Thread Port |
| Product height | 3.98 |
| Product height uom, Product length uom, Product width uom | inch |
| Product length | 5.20 |
| Product trade name | Xcel45 |
| Product weight | 17.00 |
| Product weight uom | pound |
| Product width | 3.66 |
| Recommended filtration level | ISO 18/13 Cleanliness |
| Return pressure rating | 21 bar |
| Valve options | Cylinder Relief Valve, Anti-Cavitation Valve, Inlet Check Valve, Load Sensing Relief Valve, Manual Steering Check Valve |
| Working temperature max | 93 degree Celsius |
