mpn:
brand:
manufacturer:
MPN:
Weight:
2.203125
Weight:
34.7 LB
Preferred Price:
582.98
Price:
582.98
Min Simple Price:
329.37
Absolute Min Price:
467.7
Min Price:
467.7
Dimensions:
[19.0, 9.0, 9.0]
qty:
21
simpleSku:
DM2MTQ:::H768
sku:
DM2MTQ::HY:H768@y0
condition:
11
seller:
AmazonTP
amzMan:
century electric/ao smith motors co
HazMat:
False
DropShip:
True

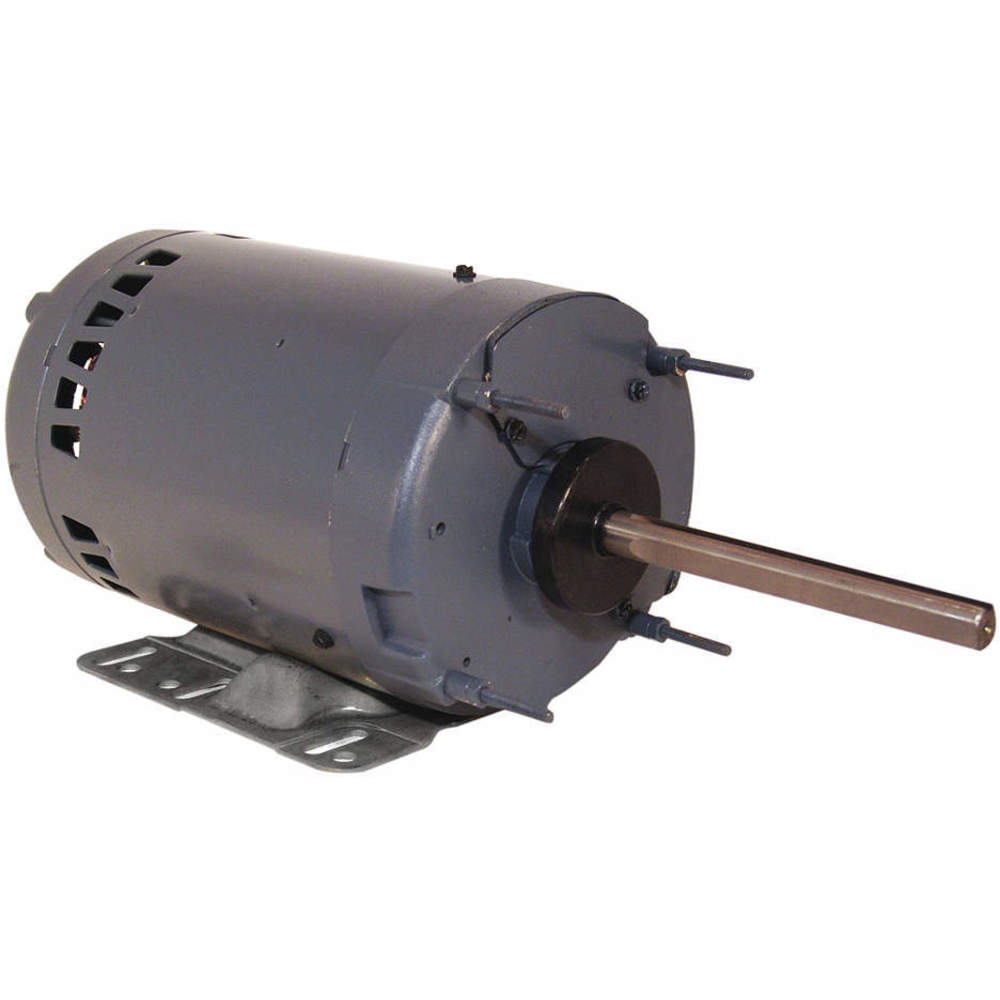

Attributes
| Key ^ | Value |
|---|---|
| Amps | 3/5.8/6 |
| Bearings, Motor Bearings | Ball |
| Body Dia., Motor Diameter | 6-1/2" |
| Category | Electric Motor |
| Duty | Continuous Air-Over |
| Duty Cycle | Continuous |
| Enclosure | OPAO |
| Enclosure Type | ODP (Open Dripproof) |
| Features | Reversible, Auto Protector, Base Mounted |
| Frame | 56Y |
| Full Load Amps | 5.8-6.0/3.0 |

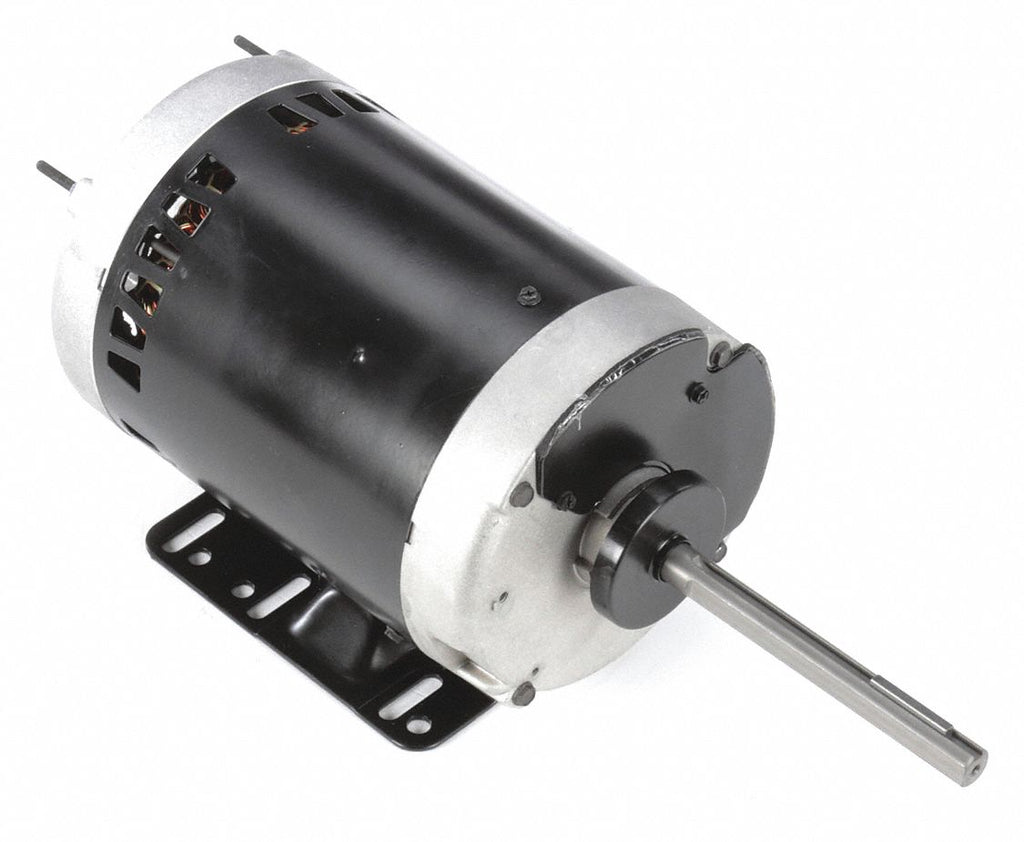

| H768 is listed in Century's cross reference as a substitute for the following | Dayton 4ME22, Dayton 5M599 |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Ins. Class, Insulation Class | B |
| Item | Condenser Fan Motor |
| Item Condition | FACTORY NEW |
| Length Less Shaft | 10-13/16" |
| Manufacturer | Century |
| Max. Ambient Temp. | 60 Degrees C |
| Maximum Ambient Temperature | 60? C |
| Motor Application | HVAC/R |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Position | Vertical Shaft Up |
| Motor Mounting Type, mounting | Rigid Base |
| Motor Service Factor, Service Factor (SF) | 1.00 |
| Motor Shaft Design | Keyed with Single Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Mounting | Rigid |
| Nameplate RPM | 1,140 |
| No. of Speeds, Number of Speeds | 1 |
| Nominal Efficiency | 0.78 |
| Overall Length | 16-13/16" |
| Phase | 3 |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1140, 1200 |
| RPM Range | 1,000 - 1,380 |
| Shaft Dia. | 5/8" |
| Shaft Diameter | 5/8" Keyed |
| Shaft Length | 6", 6.47" |
| Ship Weight | 33 lbs. |
| Standards | UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642) |
| Thermal Protection | Automatic |
| Voltage Compatibility | 200, 208, 230, 240, 460, 200-230, 200-230/440, 208-230/460, 220/460, 200-230/460, 230/460 |
| Voltage, Volts | 200-230/460 |
| Volts | 460/200/230 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| AmazonTP | B007ATNKHY | 329.37 | 329.37 | 1 | In Stock | Century Electric/AO Smith Motors Co | 329.37 @ Qty: 1+ | |||
| grainger.ca | AOSH768 | 358.03736632 | 358.03736632 | 1 | In Stock | CENTURY | 35.25 | 358.03736632 @ Qty: 1+ | ||
 | emotorpro.com | H768 | 579.45 | 579.45 | 1 | In Stock | Century | 33.0 | 579.45 @ Qty: 1+ | |
 | Dealers Electric | H768 | 605.88 | 605.88 | 1 | In Stock | Century | 33.0 | 605.88 @ Qty: 1+ | |
| Global Industrial | WBB244964 | 612.0 | 612.0 | 1 | In Stock | 15 | CENTURY | 612.0 @ Qty: 1+ | ||
 | midwestapplianceparts.com | H768-AO-P | 624.4 | 624.4 | 1 | In Stock | AO Smith | 624.4 @ Qty: 1+ | ||
 | sustainablesupply.com | C1561202 | 643.21 | 643.21 | 1 | In Stock | Century | 35.25 | 643.21 @ Qty: 1+ | |
 | National Supply Network | B244964 | 643.29 | 643.29 | 1 | In Stock | AO SMITH | 643.29 @ Qty: 1+ | ||
 | Raptor Supplies | AD8TTZ | 647.5601925 | 647.5601925 | 1 | In Stock | CENTURY | 647.5601925 @ Qty: 1+ | ||
 | industrialstores.com | H768 | 651.55 | 651.55 | 1 | In Stock | 12 | Century Motors by Regal Beloit | 651.55 @ Qty: 1+ | |
| hvacdiscountstore.com | CEN--H768 | 676.24 | 676.24 | 1 | In Stock | CENTURY MOTORS | 676.24 @ Qty: 1+ |
